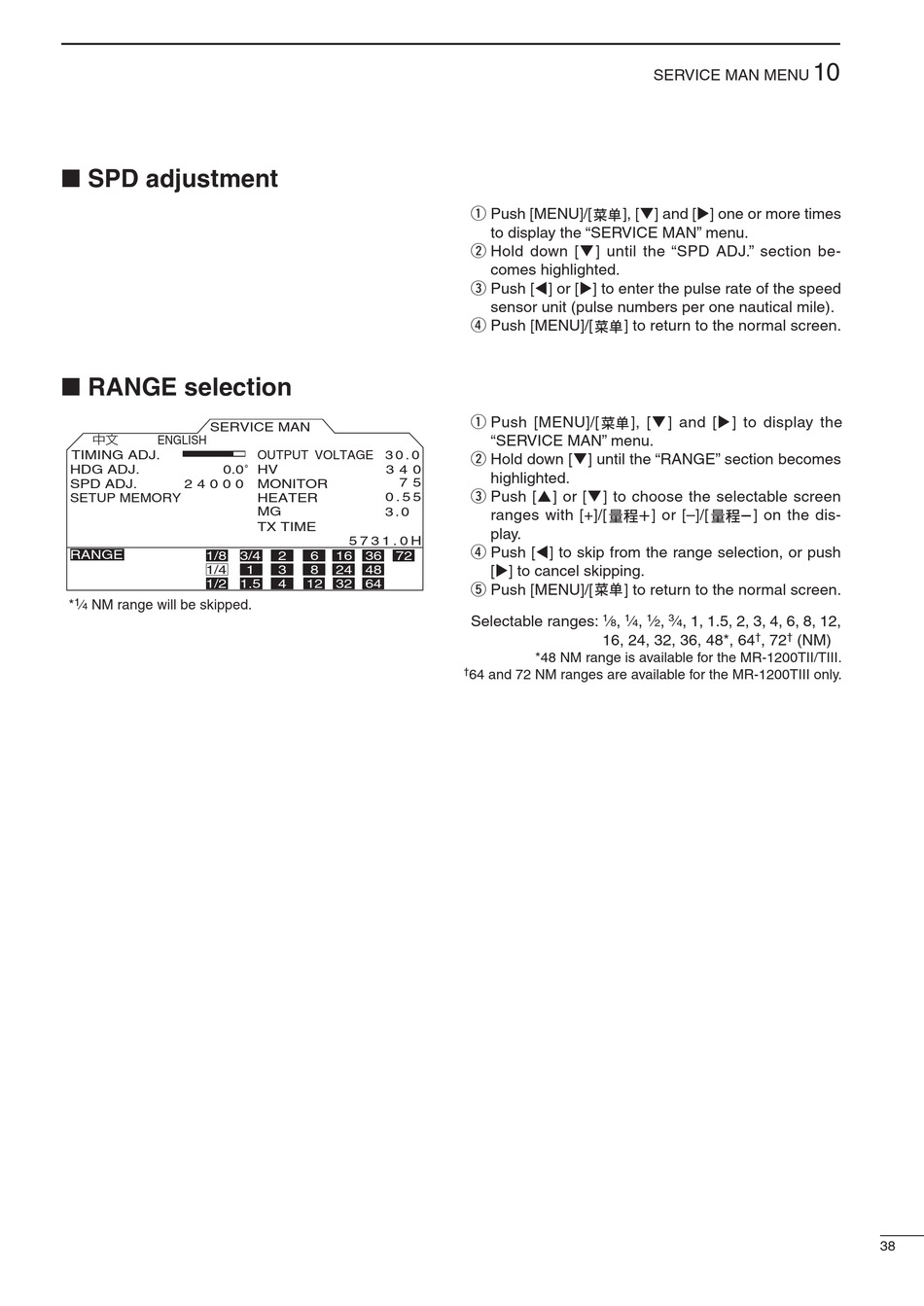

■ SPD adjustment

■ RANGE selection

SERVICE MAN
ENGLISH
TIMING ADJ.
HDG ADJ. 0.0
SPD ADJ. 2 4 0 0 0
SETUP MEMORY
RANGE
1/8
1/4
1/2
* 1 ⁄ NM range will be skipped.
4
OUTPUT VOLTAGE 3 0 . 0
˚ HV 3 4 0
7 5
MONITOR
0 . 5 5
HEATER
MG
3 . 0
TX TIME
5 7 3 1 . 0 H
3/4 2 6 16 36 72
1 3 8 24 48
1.5 4 12 32 64
q Push [MENU]/[ ], [q] and [u] one or more times
to display the "SERVICE MAN" menu.
w Hold down [q] until the "SPD ADJ." section be-
comes highlighted.
e Push [t] or [u] to enter the pulse rate of the speed
sensor unit (pulse numbers per one nautical mile).
r Push [MENU]/[ ] to return to the normal screen.
q Push [MENU]/[ ], [q] and [u] to display the
"SERVICE MAN" menu.
w Hold down [q] until the "RANGE" section becomes
highlighted.
e Push [p] or [q] to choose the selectable screen
ranges with [+]/[
play.
r Push [t] to skip from the range selection, or push
[u] to cancel skipping.
t Push [MENU]/[ ] to return to the normal screen.
Selectable ranges: 1 ⁄ , 1 ⁄
8 4
16, 24, 32, 36, 48*, 64
*48 NM range is available for the MR-1200TII/TIII.
† 64 and 72 NM ranges are available for the MR-1200TIII only.
10
SERVICE MAN MENU
] or [–]/[ ] on the dis-
, 1 ⁄ , 3 ⁄ , 1, 1.5, 2, 3, 4, 6, 8, 12,
2 4
† †
, 72 (NM)
