1
PANEL DESCRIPTION

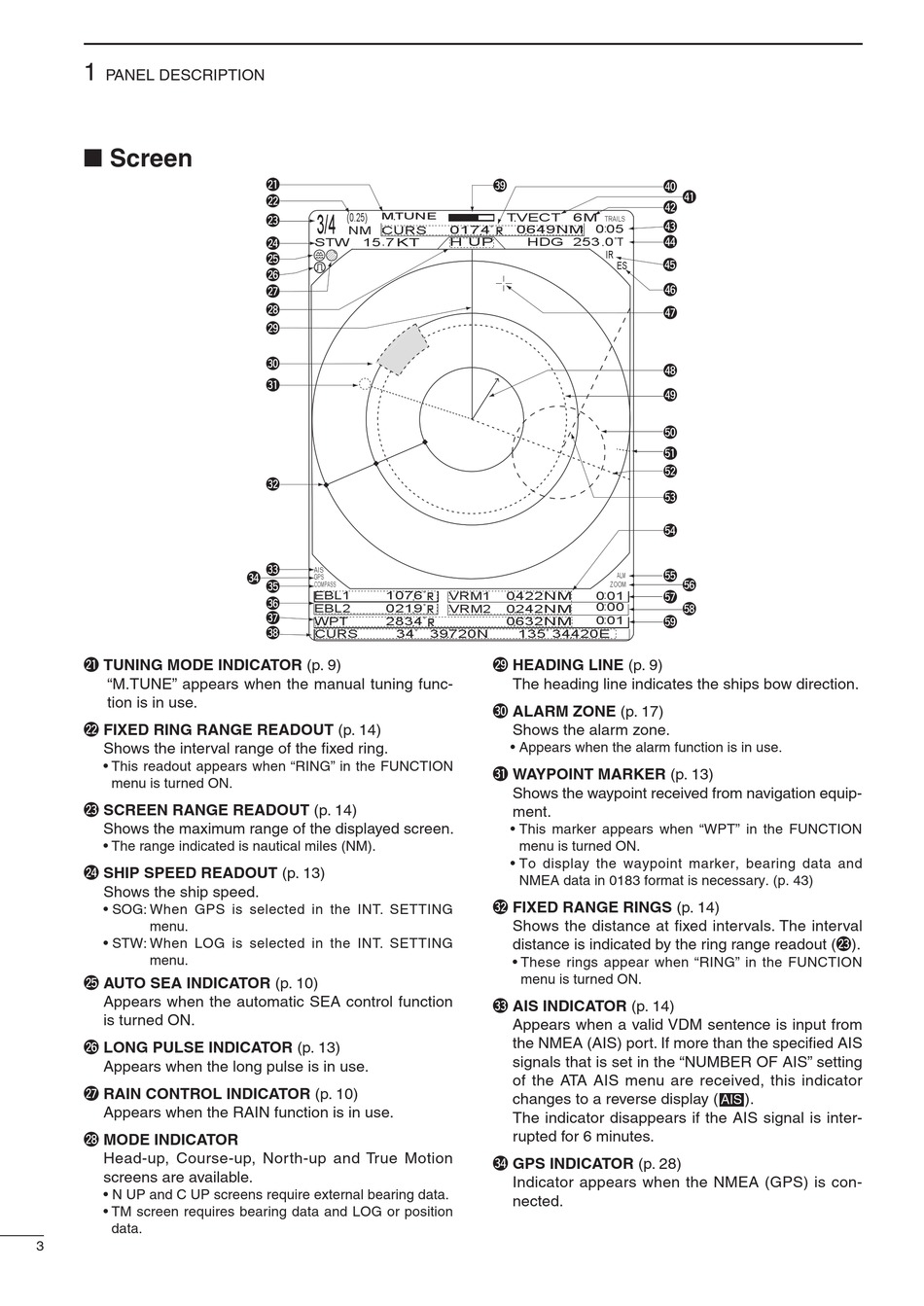

■ Screen

@1 TUNING MODE INDICATOR (p. 9)
"M.TUNE" appears when the manual tuning func-
tion is in use.
@2 FIXED RING RANGE READOUT (p. 14)
Shows the interval range of the fixed ring.
• This readout appears when "RING" in the FUNCTION
menu is turned ON.
@3 SCREEN RANGE READOUT (p. 14)
Shows the maximum range of the displayed screen.
• The range indicated is nautical miles (NM).
@4 SHIP SPEED READOUT (p. 13)
Shows the ship speed.
• SOG: When GPS is selected in the INT. SETTING

menu.

• STW: When LOG is selected in the INT. SETTING
menu.
@5 AUTO SEA INDICATOR (p. 10)
Appears when the automatic SEA control function
is turned ON.
@6 LONG PULSE INDICATOR (p. 13)
Appears when the long pulse is in use.
@7 RAIN CONTROL INDICATOR (p. 10)
Appears when the RAIN function is in use.
@8 MODE INDICATOR
Head-up, Course-up, North-up and True Motion
screens are available.
• N UP and C UP screens require external bearing data.
• TM screen requires bearing data and LOG or position
data.
3
@1
@2
3/4
(0.25)
MTUNE
@3
NM CURS
STW 15 7 KT
@4
@5
@6
@7
@8
@9
#0
#1
#2
#3
AIS
#4
GPS
#5 COMPASS
EBL1 1076˚
#6
EBL2 0219˚
#7
WPT 2834˚
#8 CURS 34˚
#9
TVECT 6M
TRAILS
:
0649NM 0 05
0174˚R
H UP HDG 253 0˚T
:
VRM1 0422NM 0 01
:
0 00
VRM2 0242NM
:
0 01
0632NM
39720N 135˚ 34420E
@9 HEADING LINE (p. 9)
The heading line indicates the ships bow direction.
#0 ALARM ZONE (p. 17)
Shows the alarm zone.
• Appears when the alarm function is in use.
#1 WAYPOINT MARKER (p. 13)
Shows the waypoint received from navigation equip-
ment.
• This marker appears when "WPT" in the FUNCTION
menu is turned ON.
• To display the waypoint marker, bearing data and
NMEA data in 0183 format is necessary. (p. 43)
#2 FIXED RANGE RINGS (p. 14)
Shows the distance at fixed intervals. The interval
distance is indicated by the ring range readout (@3 ) .
• These rings appear when "RING" in the FUNCTION
menu is turned ON.
#3 AIS INDICATOR (p. 14)
Appears when a valid VDM sentence is input from
the NMEA (AIS) port. If more than the specified AIS
signals that is set in the "NUMBER OF AIS" setting
of the ATA AIS menu are received, this indicator
changes to a reverse display (
The indicator disappears if the AIS signal is inter-
rupted for 6 minutes.
#4 GPS INDICATOR (p. 28)
Indicator appears when the NMEA (GPS) is con-
nected.
$0
$1
$2
$3
$4
IR
$5
ES
$6
$7
$8
$9
%0
%1
%2
%3
%4
%5
ALM
%6
ZOOM
%7
%8
%9
).
AIS
