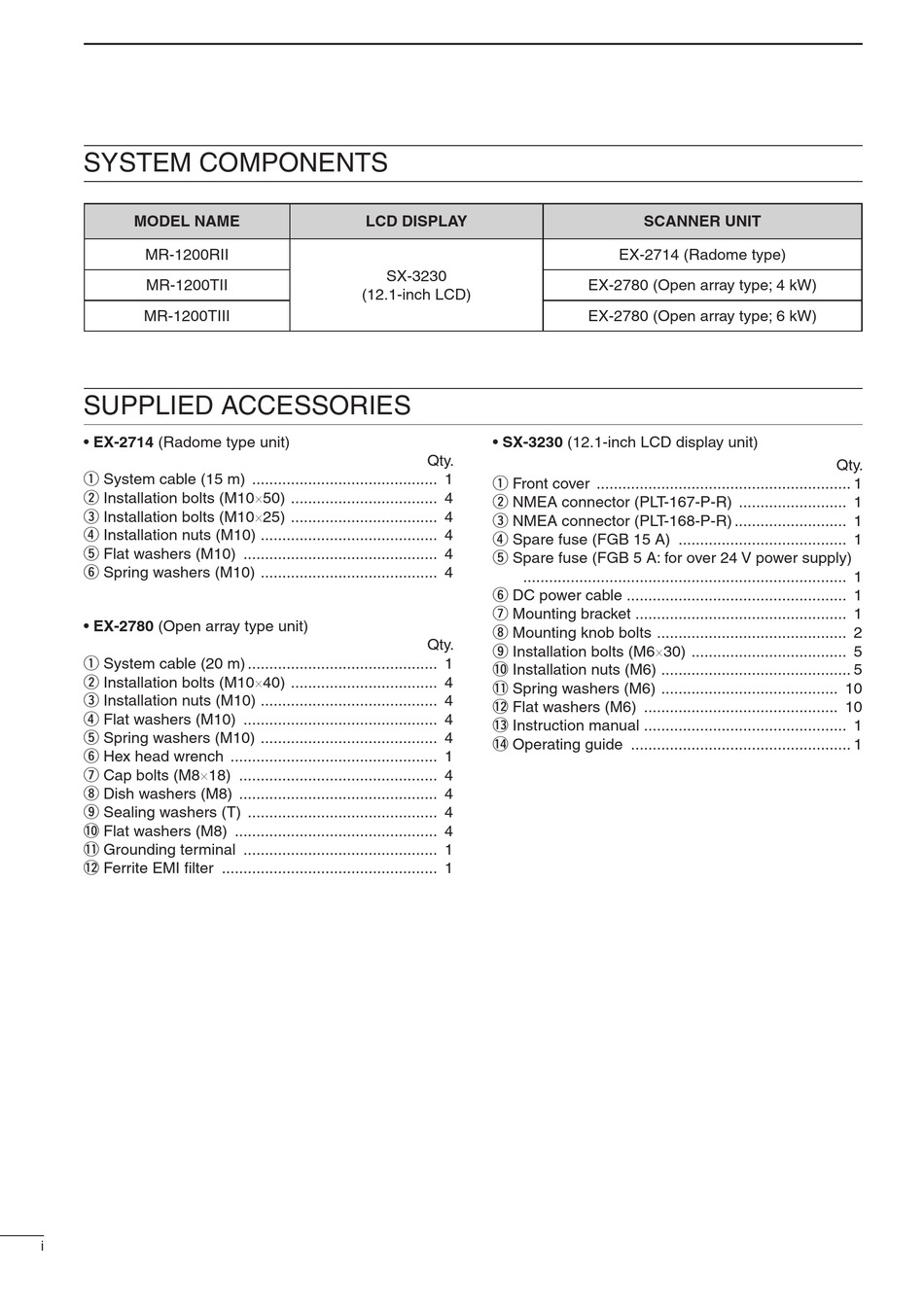

SYSTEM COMPONENTS

MODEL NAME
MR-1200RII
MR-1200TII
MR-1200TIII

SUPPLIED ACCESSORIES

• EX-2714 (Radome type unit)
q System cable (15 m) ........................................... 1
w Installation bolts (M10×50) .................................. 4
e Installation bolts (M10×25) .................................. 4
r Installation nuts (M10) ......................................... 4
t Flat washers (M10) ............................................. 4
y Spring washers (M10) ......................................... 4
• EX-2780 (Open array type unit)
q System cable (20 m) ............................................ 1
w Installation bolts (M10×40) .................................. 4
e Installation nuts (M10) ......................................... 4
r Flat washers (M10) ............................................. 4
t Spring washers (M10) ......................................... 4
y Hex head wrench ................................................ 1
u Cap bolts (M8×18) .............................................. 4
i Dish washers (M8) .............................................. 4
o Sealing washers (T) ............................................ 4
!0 Flat washers (M8) ............................................... 4
!1 Grounding terminal ............................................. 1
!2 Ferrite EMI filter .................................................. 1
i
LCD DISPLAY
SX-3230
(12.1-inch LCD)
• SX-3230 (12.1-inch LCD display unit)
Qty.
q Front cover ........................................................... 1
w NMEA connector (PLT-167-P-R) ......................... 1
e NMEA connector (PLT-168-P-R) .......................... 1
r Spare fuse (FGB 15 A) ....................................... 1
t Spare fuse (FGB 5 A: for over 24 V power supply)
........................................................................... 1
y DC power cable ................................................... 1
u Mounting bracket ................................................. 1
i Mounting knob bolts ............................................ 2
Qty.
o Installation bolts (M6×30) .................................... 5
!0 Installation nuts (M6) ............................................ 5
!1 Spring washers (M6) ......................................... 10
!2 Flat washers (M6) ............................................. 10
!3 Instruction manual ............................................... 1
!4 Operating guide ................................................... 1
SCANNER UNIT
EX-2714 (Radome type)
EX-2780 (Open array type; 4 kW)
EX-2780 (Open array type; 6 kW)
Qty.
