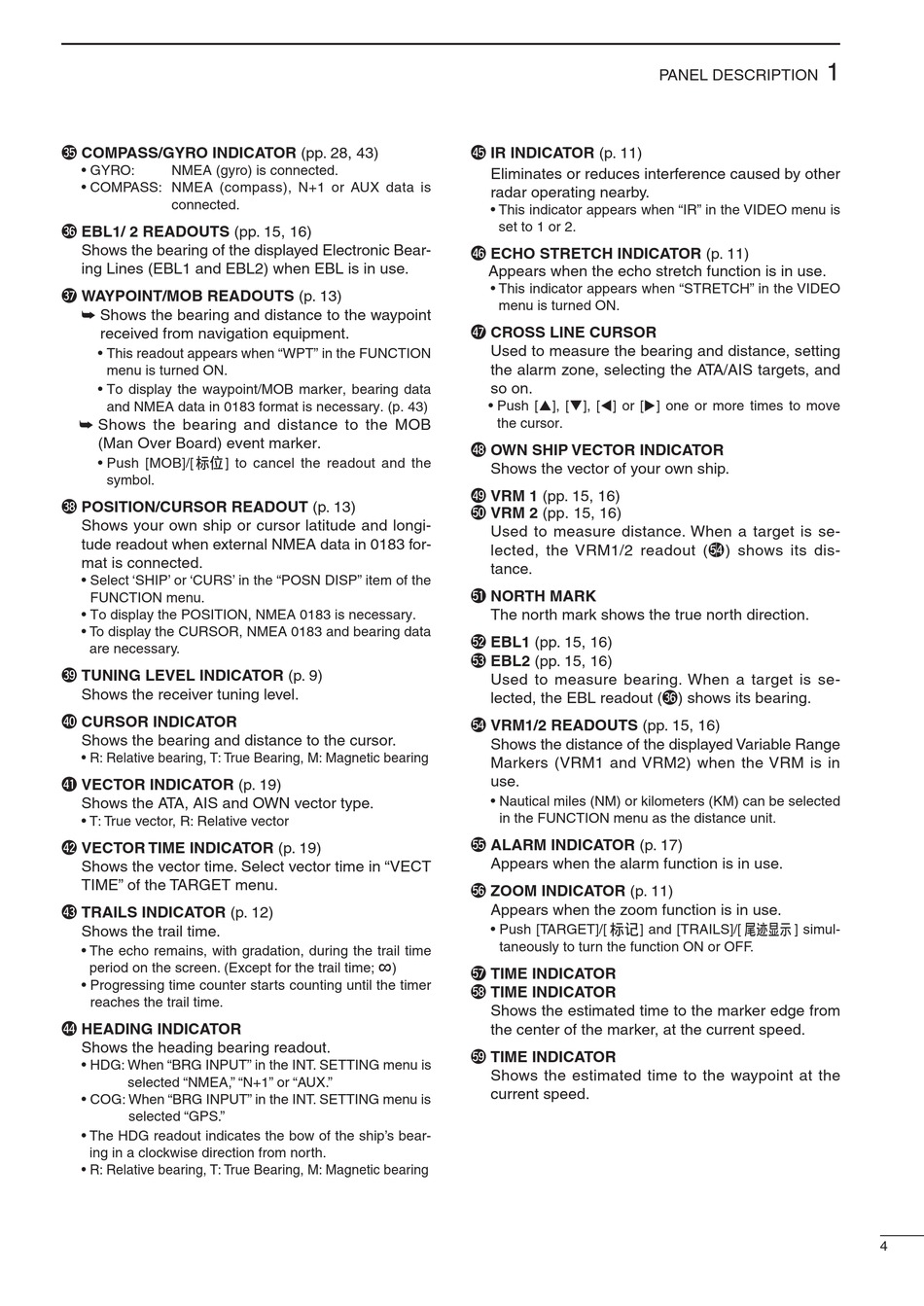

#5 COMPASS/GYRO INDICATOR (pp. 28, 43)
• GYRO: NMEA (gyro) is connected.
• COMPASS: NMEA (compass), N+1 or AUX data is
connected.
#6 EBL1/ 2 READOUTS (pp. 15, 16)
Shows the bearing of the displayed Electronic Bear-
ing Lines (EBL1 and EBL2) when EBL is in use.
#7 WAYPOINT/MOB READOUTS (p. 13)
➥ Shows the bearing and distance to the waypoint
received from navigation equipment.
• This readout appears when "WPT" in the FUNCTION
menu is turned ON.
• To display the waypoint/MOB marker, bearing data
and NMEA data in 0183 format is necessary. (p. 43)
➥ Shows the bearing and distance to the MOB
(Man Over Board) event marker.
• Push [MOB]/[ ] to cancel the readout and the
symbol.
#8 POSITION/CURSOR READOUT (p. 13)
Shows your own ship or cursor latitude and longi-
tude readout when external NMEA data in 0183 for-
mat is connected.
• Select 'SHIP' or 'CURS' in the "POSN DISP" item of the
FUNCTION menu.
• To display the POSITION, NMEA 0183 is necessary.
• To display the CURSOR, NMEA 0183 and bearing data
are necessary.
#9 TUNING LEVEL INDICATOR (p. 9)
Shows the receiver tuning level.
$0 CURSOR INDICATOR
Shows the bearing and distance to the cursor.
• R: Relative bearing, T: True Bearing, M: Magnetic bearing
$1 VECTOR INDICATOR (p. 19)
Shows the ATA, AIS and OWN vector type.
• T: True vector, R: Relative vector
$2 VECTOR TIME INDICATOR (p. 19)
Shows the vector time. Select vector time in "VECT
TIME" of the TARGET menu.
$3 TRAILS INDICATOR (p. 12)
Shows the trail time.
• The echo remains, with gradation, during the trail time
period on the screen. (Except for the trail time;
• Progressing time counter starts counting until the timer
reaches the trail time.
$4 HEADING INDICATOR
Shows the heading bearing readout.
• HDG: When "BRG INPUT" in the INT. SETTING menu is
selected "NMEA," "N+1" or "AUX."
• COG: When "BRG INPUT" in the INT. SETTING menu is
selected "GPS."
• The HDG readout indicates the bow of the ship's bear-
ing in a clockwise direction from north.
• R: Relative bearing, T: True Bearing, M: Magnetic bearing
$5 IR INDICATOR (p. 11)
Eliminates or reduces interference caused by other
radar operating nearby.
• This indicator appears when "IR" in the VIDEO menu is
set to 1 or 2.
$6 ECHO STRETCH INDICATOR (p. 11)
Appears when the echo stretch function is in use.
• This indicator appears when "STRETCH" in the VIDEO
menu is turned ON.
$7 CROSS LINE CURSOR
Used to measure the bearing and distance, setting
the alarm zone, selecting the ATA/AIS targets, and
so on.
• Push [p], [q], [t] or [u] one or more times to move
the cursor.
$8 OWN SHIP VECTOR INDICATOR
Shows the vector of your own ship.
$9 VRM 1 (pp. 15, 16)
%0 VRM 2 (pp. 15, 16)
Used to measure distance. When a target is se-
lected, the VRM1/2 readout (%4 ) shows its dis-
tance.
%1 NORTH MARK
The north mark shows the true north direction.
%2 EBL1 (pp. 15, 16)
%3 EBL2 (pp. 15, 16)
Used to measure bearing. When a target is se-
lected, the EBL readout (#6 ) shows its bearing.
%4 VRM1/2 READOUTS (pp. 15, 16)
Shows the distance of the displayed Variable Range
Markers (VRM1 and VRM2) when the VRM is in
use.
• Nautical miles (NM) or kilometers (KM) can be selected
in the FUNCTION menu as the distance unit.
%5 ALARM INDICATOR (p. 17)
Appears when the alarm function is in use.
%6 ZOOM INDICATOR (p. 11)
Appears when the zoom function is in use.
• Push [TARGET]/[
taneously to turn the function ON or OFF.
∞
)
%7 TIME INDICATOR
%8 TIME INDICATOR
Shows the estimated time to the marker edge from
the center of the marker, at the current speed.
%9 TIME INDICATOR
Shows the estimated time to the waypoint at the
current speed.
