2

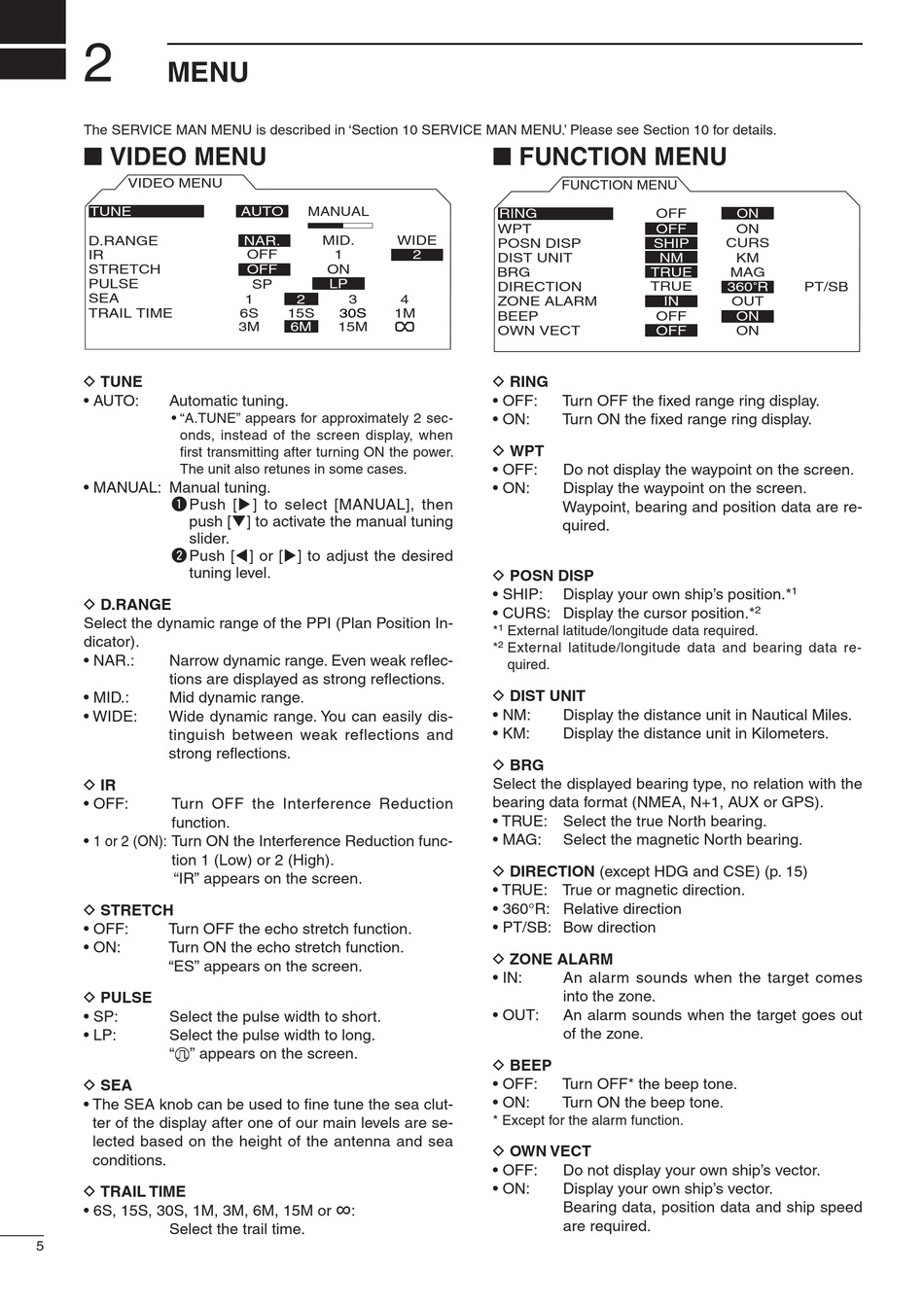

MENU
The SERVICE MAN MENU is described in 'Section 10 SERVICE MAN MENU.' Please see Section 10 for details.

■ VIDEO MENU

VIDEO MENU
TUNE
D.RANGE
IR
STRETCH
PULSE
SEA
TRAIL TIME
D TUNE
• AUTO: Automatic tuning.
• "A.TUNE" appears for approximately 2 sec-
onds, instead of the screen display, when
first transmitting after turning ON the power.
The unit also retunes in some cases.
• MANUAL: Manual tuning.
q Push [u] to select [MANUAL], then
push [q] to activate the manual tuning
slider.
w Push [t] or [u] to adjust the desired
tuning level.
D D.RANGE
Select the dynamic range of the PPI (Plan Position In-
dicator).
• NAR.: Narrow dynamic range. Even weak reflec-
tions are displayed as strong reflections.
• MID.: Mid dynamic range.
• WIDE: Wide dynamic range. You can easily dis-
tinguish between weak reflections and
strong reflections.
D IR
• OFF: Turn OFF the Interference Reduction
function.
• 1 or 2 (ON): Turn ON the Interference Reduction func-
tion 1 (Low) or 2 (High).
"IR" appears on the screen.
D STRETCH
• OFF: Turn OFF the echo stretch function.
• ON: Turn ON the echo stretch function.
"ES" appears on the screen.
D PULSE
• SP: Select the pulse width to short.
• LP: Select the pulse width to long.
" " appears on the screen.
D SEA
• The SEA knob can be used to fine tune the sea clut-
ter of the display after one of our main levels are se-
lected based on the height of the antenna and sea
conditions.
D TRAIL TIME
• 6S, 15S, 30S, 1M, 3M, 6M, 15M or
Select the trail time.
5
AUTO
MANUAL
MID. WIDE
NAR.
OFF 1 2
OFF ON
SP LP
1 2 3 4
6S 15S 30S 1M
3M 6M 15M
∞
:

■ FUNCTION MENU

FUNCTION MENU
RING OFF
WPT OFF
POSN DISP SHIP
DIST UNIT NM
BRG TRUE
DIRECTION TRUE
ZONE ALARM IN
BEEP OFF
OWN VECT OFF
D RING
• OFF: Turn OFF the fixed range ring display.
• ON: Turn ON the fixed range ring display.
D WPT
• OFF: Do not display the waypoint on the screen.
• ON: Display the waypoint on the screen.
Waypoint, bearing and position data are re-
quired.
D POSN DISP
• SHIP: Display your own ship's position.*
• CURS: Display the cursor position.*
* 1 External latitude/longitude data required.
* 2 External latitude/longitude data and bearing data re-
quired.
D DIST UNIT
• NM: Display the distance unit in Nautical Miles.
• KM: Display the distance unit in Kilometers.
D BRG
Select the displayed bearing type, no relation with the
bearing data format (NMEA, N+1, AUX or GPS).
• TRUE: Select the true North bearing.
• MAG: Select the magnetic North bearing.
D DIRECTION (except HDG and CSE) (p. 15)
• TRUE: True or magnetic direction.
• 360°R: Relative direction
• PT/SB: Bow direction
D ZONE ALARM
• IN: An alarm sounds when the target comes
into the zone.
• OUT: An alarm sounds when the target goes out
of the zone.
D BEEP
• OFF: Turn OFF* the beep tone.
• ON: Turn ON the beep tone.
* Except for the alarm function.
D OWN VECT
• OFF: Do not display your own ship's vector.
• ON: Display your own ship's vector.
Bearing data, position data and ship speed
are required.
ON
ON
CURS
KM
MAG
360 ˚ R PT/SB
OUT
ON
ON
1
2
