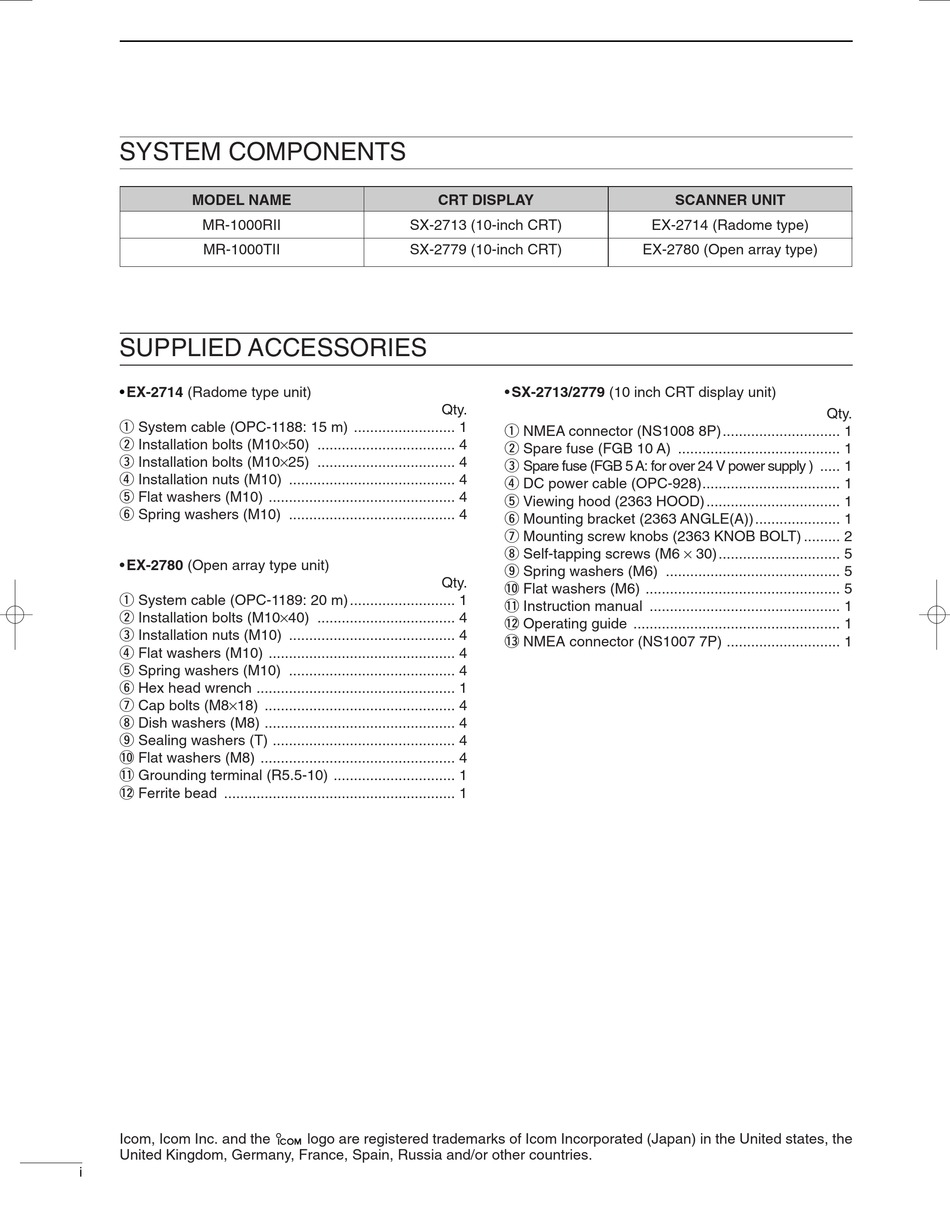

SYSTEM COMPONENTS

MODEL NAME
MR-1000RII
MR-1000TII

SUPPLIED ACCESSORIES

• EX-2714 (Radome type unit)
q System cable (OPC-1188: 15 m) ......................... 1
w Installation bolts (M10×50) .................................. 4
e Installation bolts (M10×25) .................................. 4
r Installation nuts (M10) ......................................... 4
t Flat washers (M10) .............................................. 4
y Spring washers (M10) ......................................... 4
• EX-2780 (Open array type unit)
q System cable (OPC-1189: 20 m) .......................... 1
w Installation bolts (M10×40) .................................. 4
e Installation nuts (M10) ......................................... 4
r Flat washers (M10) .............................................. 4
t Spring washers (M10) ......................................... 4
y Hex head wrench ................................................. 1
u Cap bolts (M8×18) ............................................... 4
i Dish washers (M8) ............................................... 4
o Sealing washers (T) ............................................. 4
!0 Flat washers (M8) ................................................ 4
!1 Grounding terminal (R5.5-10) .............................. 1
!2 Ferrite bead ......................................................... 1
