7

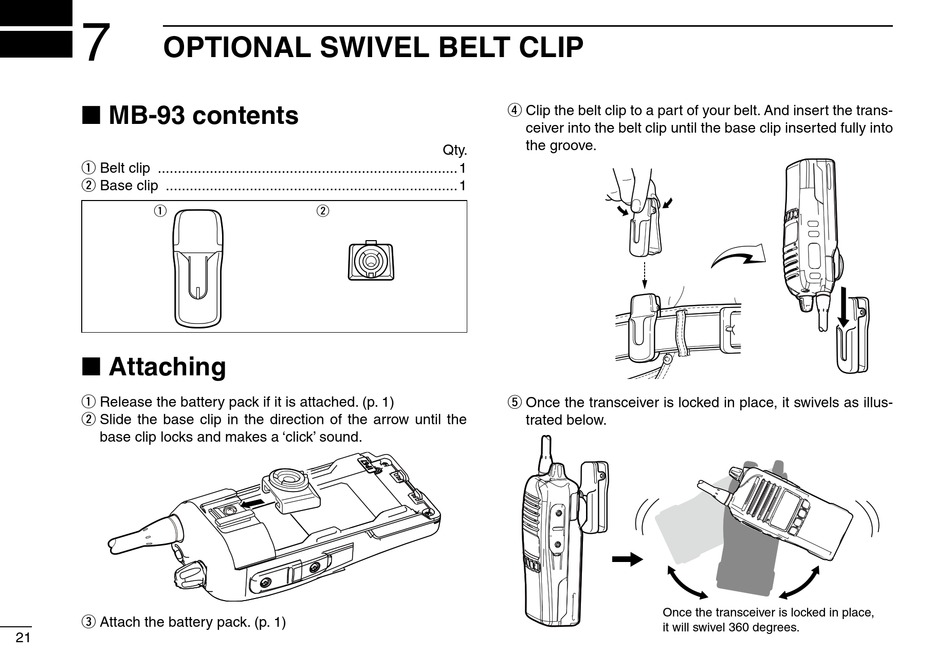

OPTIONAL SWIVEL BELT CLIP

■ MB-93 contents
q Belt clip ...........................................................................1
w Base clip .........................................................................1
q

■ Attaching

q Release the battery pack if it is attached. (p. 1)
w Slide the base clip in the direction of the arrow until the
base clip locks and makes a 'click' sound.
e Attach the battery pack. (p. 1)
21
Qty.
w
r Clip the belt clip to a part of your belt. And insert the trans-
ceiver into the belt clip until the base clip inserted fully into
the groove.
t Once the transceiver is locked in place, it swivels as illus-
trated below.
Once the transceiver is locked in place,
it will swivel 360 degrees.
