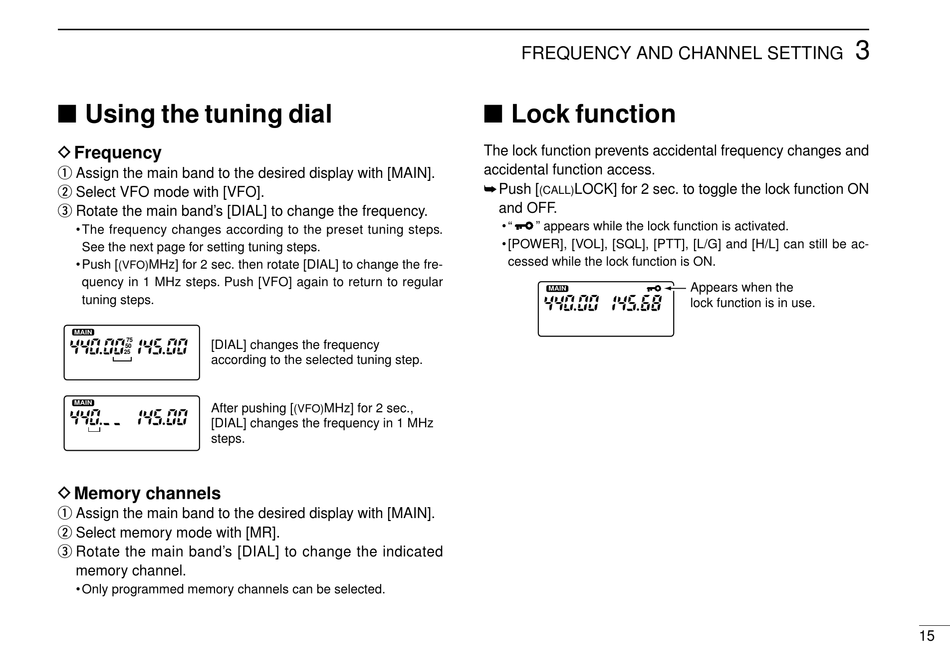

Using the tuning dial

D Frequency
q Assign the main band to the desired display with [MAIN].
w Select VFO mode with [VFO].
e Rotate the main band's [DIAL] to change the frequency.
• The frequency changes according to the preset tuning steps.
See the next page for setting tuning steps.
• Push [ MHz] for 2 sec. then rotate [DIAL] to change the fre-
(VFO)
quency in 1 MHz steps. Push [VFO] again to return to regular
tuning steps.
MAIN
75
[DIAL] changes the frequency
50
25
according to the selected tuning step.
MAIN
After pushing [
[DIAL] changes the frequency in 1 MHz
steps.
D Memory channels
q Assign the main band to the desired display with [MAIN].
w Select memory mode with [MR].
e Rotate the main band's [DIAL] to change the indicated
memory channel.
• Only programmed memory channels can be selected.
MHz] for 2 sec.,
(VFO)
FREQUENCY AND CHANNEL SETTING

Lock function

The lock function prevents accidental frequency changes and
accidental function access.
Push [ LOCK] for 2 sec. to toggle the lock function ON
(CALL)
and OFF.
• " " appears while the lock function is activated.
• [POWER], [VOL], [SQL], [PTT], [L/G] and [H/L] can still be ac-
cessed while the lock function is ON.
MAIN
3
Appears when the
lock function is in use.
15
