5

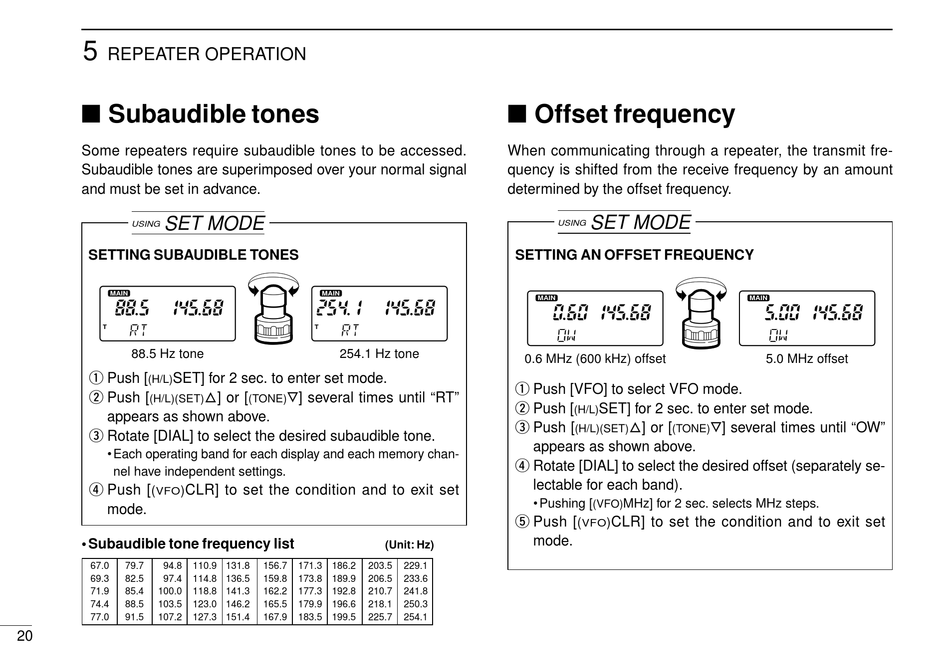

REPEATER OPERATION

Subaudible tones

Some repeaters require subaudible tones to be accessed.
Subaudible tones are superimposed over your normal signal
and must be set in advance.
SET MODE
USING
SETTING SUBAUDIBLE TONES
MAIN
T
88.5 Hz tone
q Push [
SET] for 2 sec. to enter set mode.
(H/L)
w Push [
(H/L)(SET)
appears as shown above.
e Rotate [DIAL] to select the desired subaudible tone.
• Each operating band for each display and each memory chan-
nel have independent settings.
r Push [
CLR] to set the condition and to exit set
( )
VFO
mode.
• Subaudible tone frequency list
67.0 79.7 94.8 110.9
69.3 82.5 97.4 114.8
71.9 85.4 100.0 118.8
74.4 88.5 103.5 123.0
77.0 91.5 107.2 127.3
20
MAIN
T
254.1 Hz tone
J] or [ K] several times until "RT"
(TONE)
131.8 156.7 171.3 186.2 203.5
136.5 159.8 173.8 189.9 206.5
141.3 162.2 177.3 192.8 210.7
146.2 165.5 179.9 196.6 218.1
151.4 167.9 183.5 199.5 225.7

Offset frequency

When communicating through a repeater, the transmit fre-
quency is shifted from the receive frequency by an amount
determined by the offset frequency.
USING
SETTING AN OFFSET FREQUENCY
MAIN
0.6 MHz (600 kHz) offset
q Push [VFO] to select VFO mode.
w Push [
e Push [
appears as shown above.
r Rotate [DIAL] to select the desired offset (separately se-
lectable for each band).
• Pushing [
t Push [
mode.
(Unit: Hz)
229.1
233.6
241.8
250.3
254.1
SET MODE
MAIN
SET] for 2 sec. to enter set mode.
(H/L)
J] or [ K] several times until "OW"
(H/L)(SET) (TONE)
MHz] for 2 sec. selects MHz steps.
(VFO)
CLR] to set the condition and to exit set
( )
VFO
5.0 MHz offset
