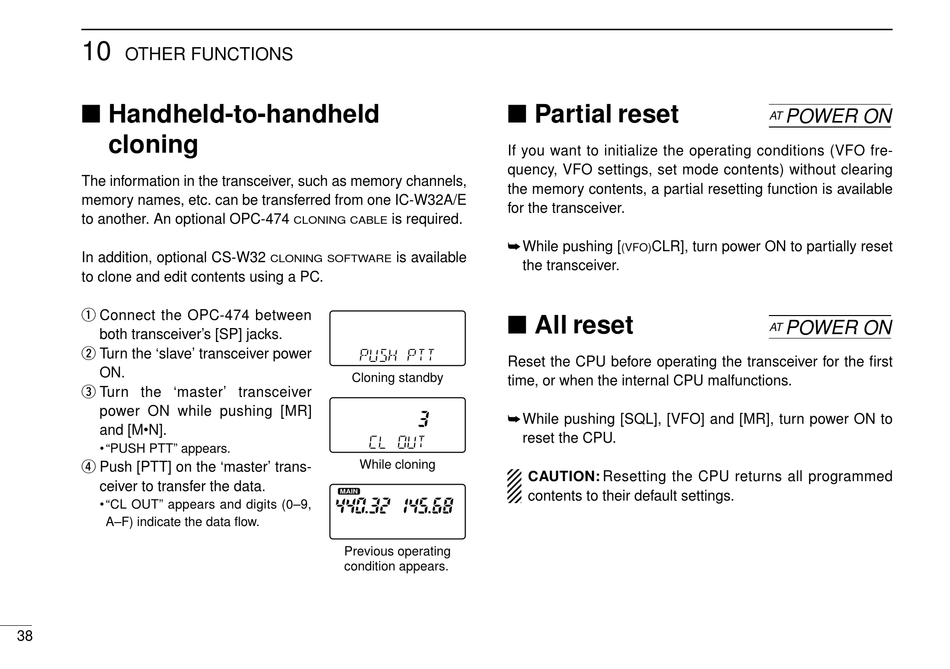

Handheld-To-Handheld Cloning; Other Functions; Partial Reset; All Reset - Icom IC-W32A Instruction Manual

10

OTHER FUNCTIONS

Handheld-to-handheld
cloning
The information in the transceiver, such as memory channels,
memory names, etc. can be transferred from one IC-W32A/E
to another. An optional OPC-474
In addition, optional CS-W32
to clone and edit contents using a PC.
q Connect the OPC-474 between
both transceiver's [SP] jacks.
w Turn the 'slave' transceiver power
ON.
e Turn the 'master' transceiver
power ON while pushing [MR]
and [M•N].
• "PUSH PTT" appears.
r Push [PTT] on the 'master' trans-
ceiver to transfer the data.
• "CL OUT" appears and digits (0–9,
A–F) indicate the data flow.
38
is required.
CLONING CABLE
is available
CLONING SOFTWARE
Cloning standby
While cloning
MAIN
Previous operating
condition appears.

Partial reset

If you want to initialize the operating conditions (VFO fre-
quency, VFO settings, set mode contents) without clearing
the memory contents, a partial resetting function is available
for the transceiver.
While pushing [ CLR], turn power ON to partially reset
(VFO)
the transceiver.

All reset

Reset the CPU before operating the transceiver for the first
time, or when the internal CPU malfunctions.
While pushing [SQL], [VFO] and [MR], turn power ON to
reset the CPU.
CAUTION: Resetting the CPU returns all programmed
contents to their default settings.
POWER ON
AT
POWER ON
AT
