Frequency Or Channel Selection Via The Keypad - Icom IC-W32A Instruction Manual

3

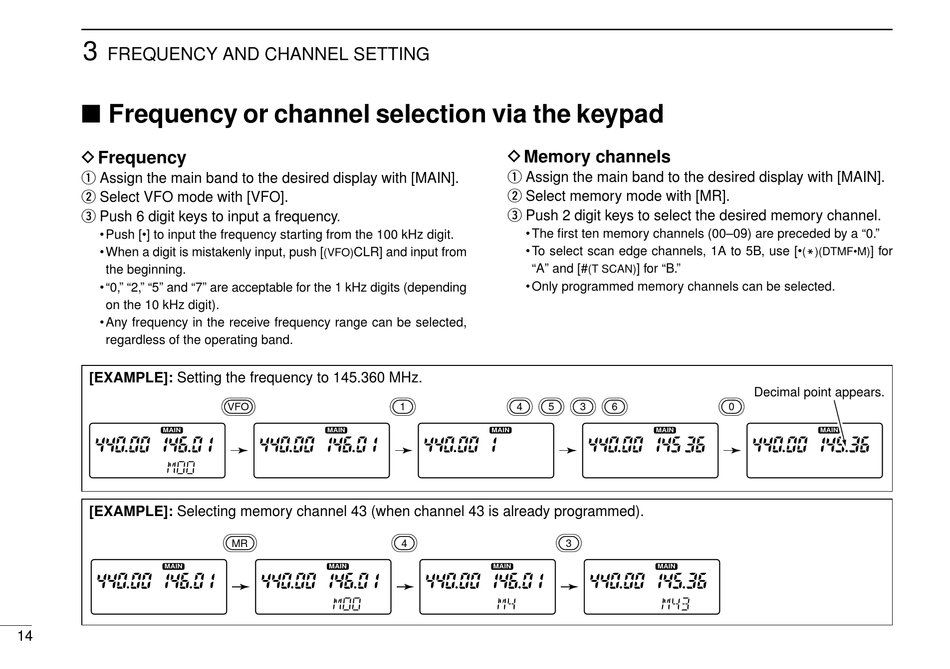

FREQUENCY AND CHANNEL SETTING

Frequency or channel selection via the keypad

D Frequency
q Assign the main band to the desired display with [MAIN].
w Select VFO mode with [VFO].
e Push 6 digit keys to input a frequency.
• Push [•] to input the frequency starting from the 100 kHz digit.
• When a digit is mistakenly input, push [
the beginning.
• "0," "2," "5" and "7" are acceptable for the 1 kHz digits (depending
on the 10 kHz digit).
• Any frequency in the receive frequency range can be selected,
regardless of the operating band.
[EXAMPLE]: Setting the frequency to 145.360 MHz.
MAIN
[EXAMPLE]: Selecting memory channel 43 (when channel 43 is already programmed).
MAIN
14
CLR] and input from
(VFO)
VFO 1
MAIN
MR 4
MAIN
D Memory channels
q Assign the main band to the desired display with [MAIN].
w Select memory mode with [MR].
e Push 2 digit keys to select the desired memory channel.
• The first ten memory channels (00–09) are preceded by a "0."
• To select scan edge channels, 1A to 5B, use [•
"A" and [# ] for "B."
(T SCAN)
• Only programmed memory channels can be selected.
4 5 3 6
MAIN MAIN
3
MAIN MAIN
] for
(M)(DTMF•M)
Decimal point appears.
0
MAIN
