7

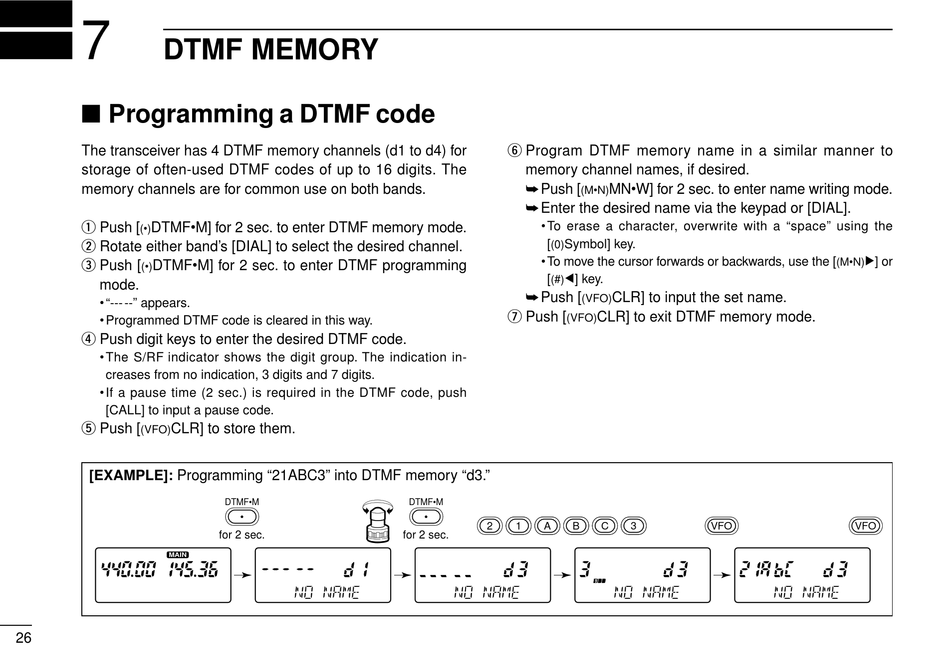

DTMF MEMORY

Programming a DTMF code

The transceiver has 4 DTMF memory channels (d1 to d4) for
storage of often-used DTMF codes of up to 16 digits. The
memory channels are for common use on both bands.
q Push [
DTMF•M] for 2 sec. to enter DTMF memory mode.
(•)
w Rotate either band's [DIAL] to select the desired channel.
e Push [
DTMF•M] for 2 sec. to enter DTMF programming
(•)
mode.
• "--- --" appears.
• Programmed DTMF code is cleared in this way.
r Push digit keys to enter the desired DTMF code.
• The S/RF indicator shows the digit group. The indication in-
creases from no indication, 3 digits and 7 digits.
• If a pause time (2 sec.) is required in the DTMF code, push
[CALL] to input a pause code.
t Push [
CLR] to store them.
(VFO)
[EXAMPLE]: Programming "21ABC3" into DTMF memory "d3."
MAIN
26
DTMF•M
•
for 2 sec.
y Program DTMF memory name in a similar manner to
memory channel names, if desired.
Push [
(M•N)
Enter the desired name via the keypad or [DIAL].
• To erase a character, overwrite with a "space" using the
[ Symbol] key.
(0)
• To move the cursor forwards or backwards, use the [
[ Ω] key.
(#)
Push [
(VFO)
u Push [
(VFO)
DTMF•M
•
2 1 1 1 A B 1
for 2 sec.
MN•W] for 2 sec. to enter name writing mode.
CLR] to input the set name.
CLR] to exit DTMF memory mode.
C 1 3 1 VFO
≈] or
(M•N)
VFO
