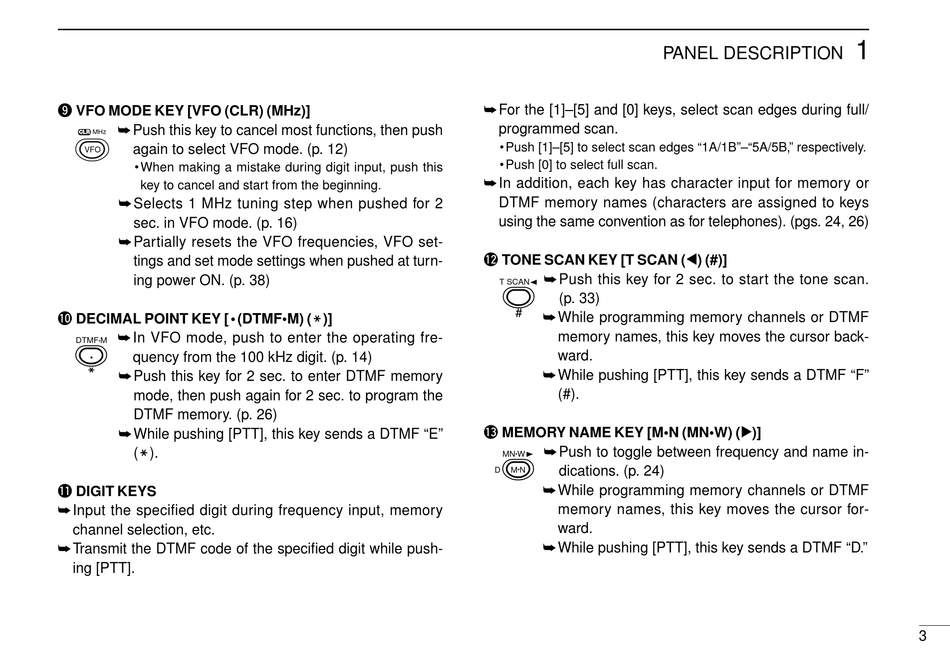

Icom IC-W32A Instruction Manual page 7

o VFO MODE KEY [VFO (CLR) (MHz)]
Push this key to cancel most functions, then push
CLR CLR MHz
again to select VFO mode. (p. 12)
VFO
• When making a mistake during digit input, push this
key to cancel and start from the beginning.
Selects 1 MHz tuning step when pushed for 2
sec. in VFO mode. (p. 16)
Partially resets the VFO frequencies, VFO set-
tings and set mode settings when pushed at turn-
ing power ON. (p. 38)
!0 DECIMAL POINT KEY [ • (DTMF•M) (M)]
In VFO mode, push to enter the operating fre-
DTMF M
•
quency from the 100 kHz digit. (p. 14)
•
M
Push this key for 2 sec. to enter DTMF memory
mode, then push again for 2 sec. to program the
DTMF memory. (p. 26)
While pushing [PTT], this key sends a DTMF "E"
(M).
!1 DIGIT KEYS
Input the specified digit during frequency input, memory
channel selection, etc.
Transmit the DTMF code of the specified digit while push-
ing [PTT].
PANEL DESCRIPTION
For the [1]–[5] and [0] keys, select scan edges during full/
programmed scan.
• Push [1]–[5] to select scan edges "1A/1B"–"5A/5B," respectively.
• Push [0] to select full scan.
In addition, each key has character input for memory or
DTMF memory names (characters are assigned to keys
using the same convention as for telephones). (pgs. 24, 26)
!2 TONE SCAN KEY [T SCAN (Ω Ω ) (#)]
Push this key for 2 sec. to start the tone scan.
T SCAN
(p. 33)
#
While programming memory channels or DTMF
memory names, this key moves the cursor back-
ward.
While pushing [PTT], this key sends a DTMF "F"
(#).
!3 MEMORY NAME KEY [M•N (MN•W) (≈ ≈ )]
Push to toggle between frequency and name in-
MN W
•
dications. (p. 24)
D M N
•
While programming memory channels or DTMF
memory names, this key moves the cursor for-
ward.
While pushing [PTT], this key sends a DTMF "D."
1
3
