3
FREQUENCY AND CHANNEL SETTING

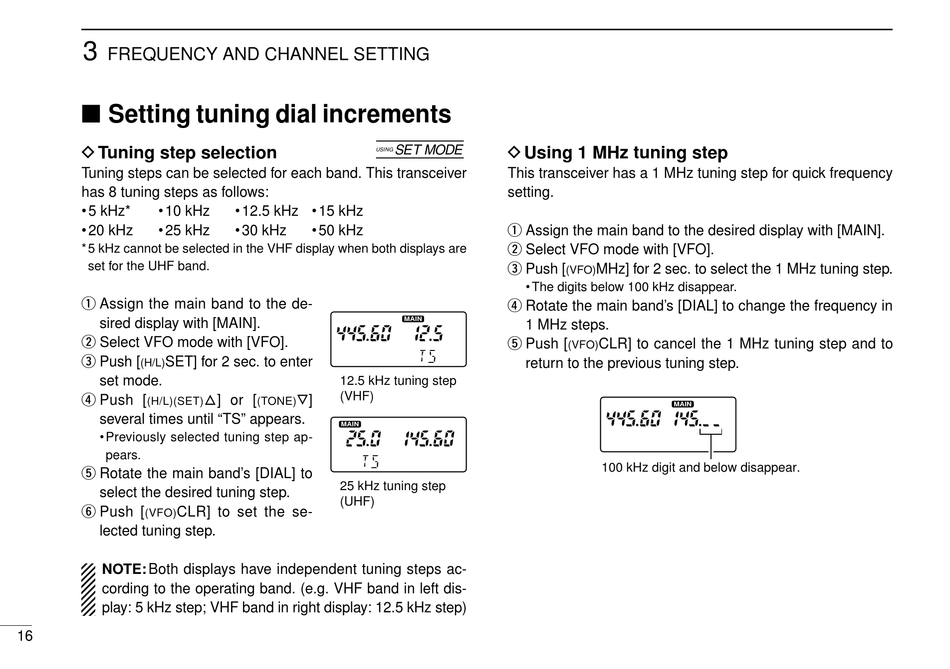

Setting tuning dial increments

D Tuning step selection
Tuning steps can be selected for each band. This transceiver
has 8 tuning steps as follows:
• 5 kHz* • 10 kHz
• 20 kHz • 25 kHz
* 5 kHz cannot be selected in the VHF display when both displays are
set for the UHF band.
q Assign the main band to the de-
sired display with [MAIN].
w Select VFO mode with [VFO].
e Push [
SET] for 2 sec. to enter
(H/L)
set mode.
r Push [
(H/L)(SET)
several times until "TS" appears.
• Previously selected tuning step ap-
pears.
t Rotate the main band's [DIAL] to
select the desired tuning step.
y Push [
CLR] to set the se-
(VFO)
lected tuning step.
NOTE: Both displays have independent tuning steps ac-
cording to the operating band. (e.g. VHF band in left dis-
play: 5 kHz step; VHF band in right display: 12.5 kHz step)
16
[
• 12.5 kHz • 15 kHz
• 30 kHz • 50 kHz
12.5 kHz tuning step
(VHF)
J] or [
K]
(TONE)
MAIN
25 kHz tuning step
(UHF)
D Using 1 MHz tuning step
This transceiver has a 1 MHz tuning step for quick frequency
setting.
q Assign the main band to the desired display with [MAIN].
w Select VFO mode with [VFO].
e Push [
(VFO)
• The digits below 100 kHz disappear.
r Rotate the main band's [DIAL] to change the frequency in
MAIN
1 MHz steps.
t Push [
(VFO)
return to the previous tuning step.
MHz] for 2 sec. to select the 1 MHz tuning step.
CLR] to cancel the 1 MHz tuning step and to
MAIN
100 kHz digit and below disappear.
