2.11.2

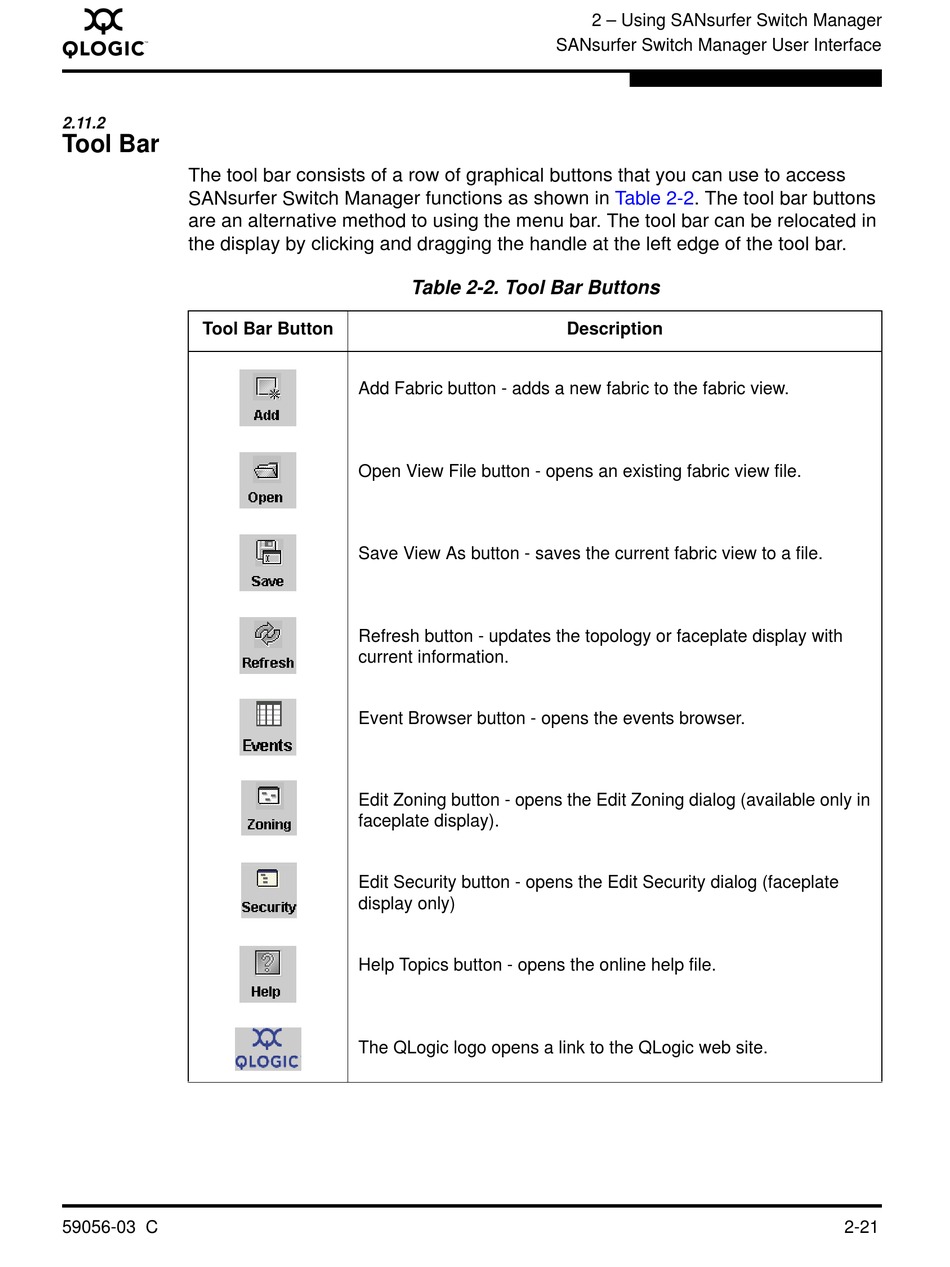

Tool Bar

The tool bar consists of a row of graphical buttons that you can use to access
SANsurfer Switch Manager functions as shown in
are an alternative method to using the menu bar. The tool bar can be relocated in
the display by clicking and dragging the handle at the left edge of the tool bar.
Tool Bar Button
59056-03 C
Table 2-2. Tool Bar Buttons
Add Fabric button - adds a new fabric to the fabric view.
Open View File button - opens an existing fabric view file.
Save View As button - saves the current fabric view to a file.
Refresh button - updates the topology or faceplate display with
current information.
Event Browser button - opens the events browser.
Edit Zoning button - opens the Edit Zoning dialog (available only in
faceplate display).
Edit Security button - opens the Edit Security dialog (faceplate
display only)
Help Topics button - opens the online help file.
The QLogic logo opens a link to the QLogic web site.
2 – Using SANsurfer Switch Manager
SANsurfer Switch Manager User Interface
Table 2-2. The tool bar buttons
Description
