5 – Managing Ports
Displaying Port Information
5.1.1.4
Displaying Transceiver Media Status

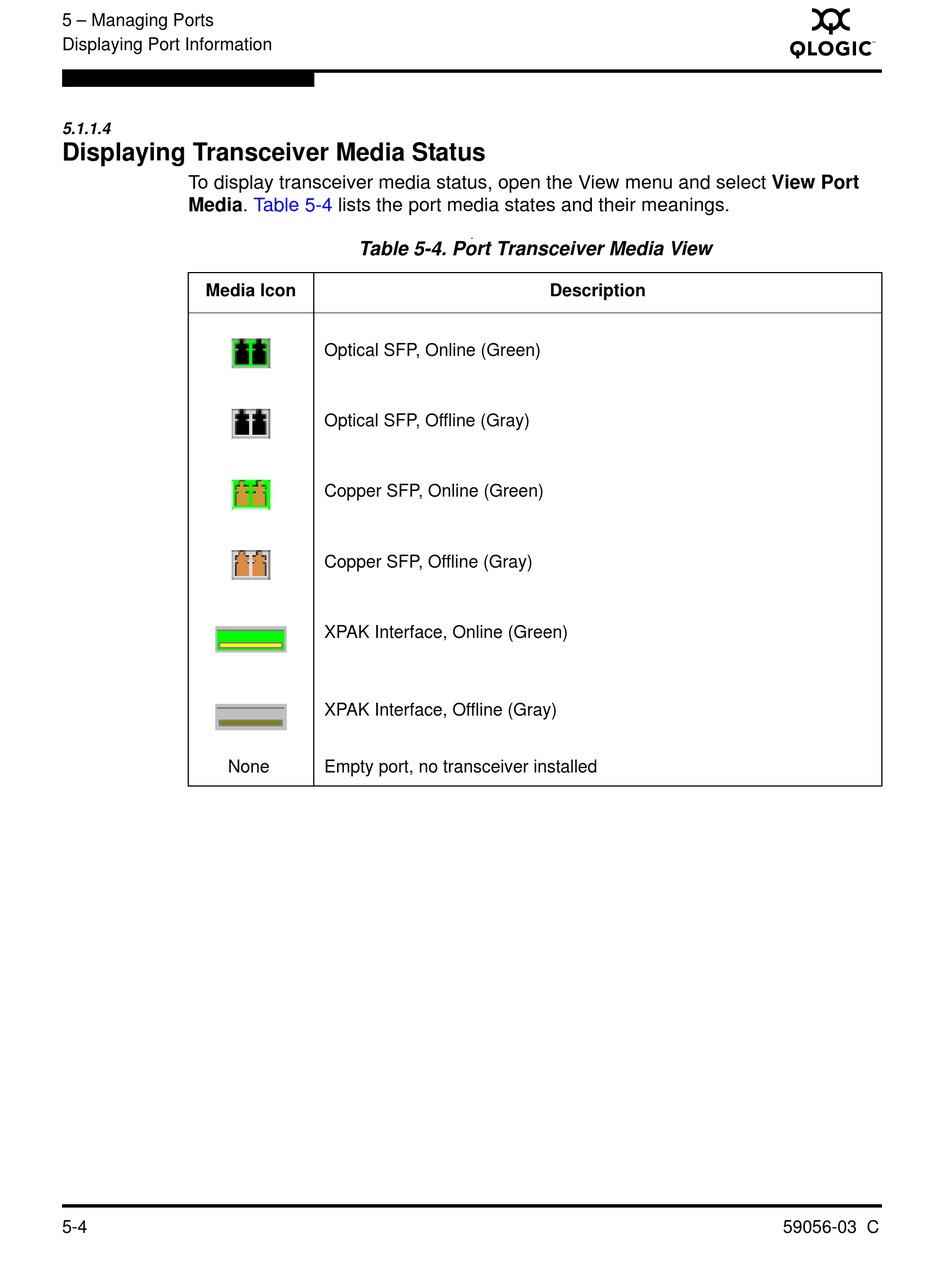

To display transceiver media status, open the View menu and select View Port
Media.
Media Icon
None
5-4
Table 5-4
lists the port media states and their meanings.
Table 5-4. Port Transceiver Media View
Optical SFP, Online (Green)
Optical SFP, Offline (Gray)
Copper SFP, Online (Green)
Copper SFP, Offline (Gray)
XPAK Interface, Online (Green)
XPAK Interface, Offline (Gray)
Empty port, no transceiver installed
.
Description
A
59056-03 C
