A
3.5.3

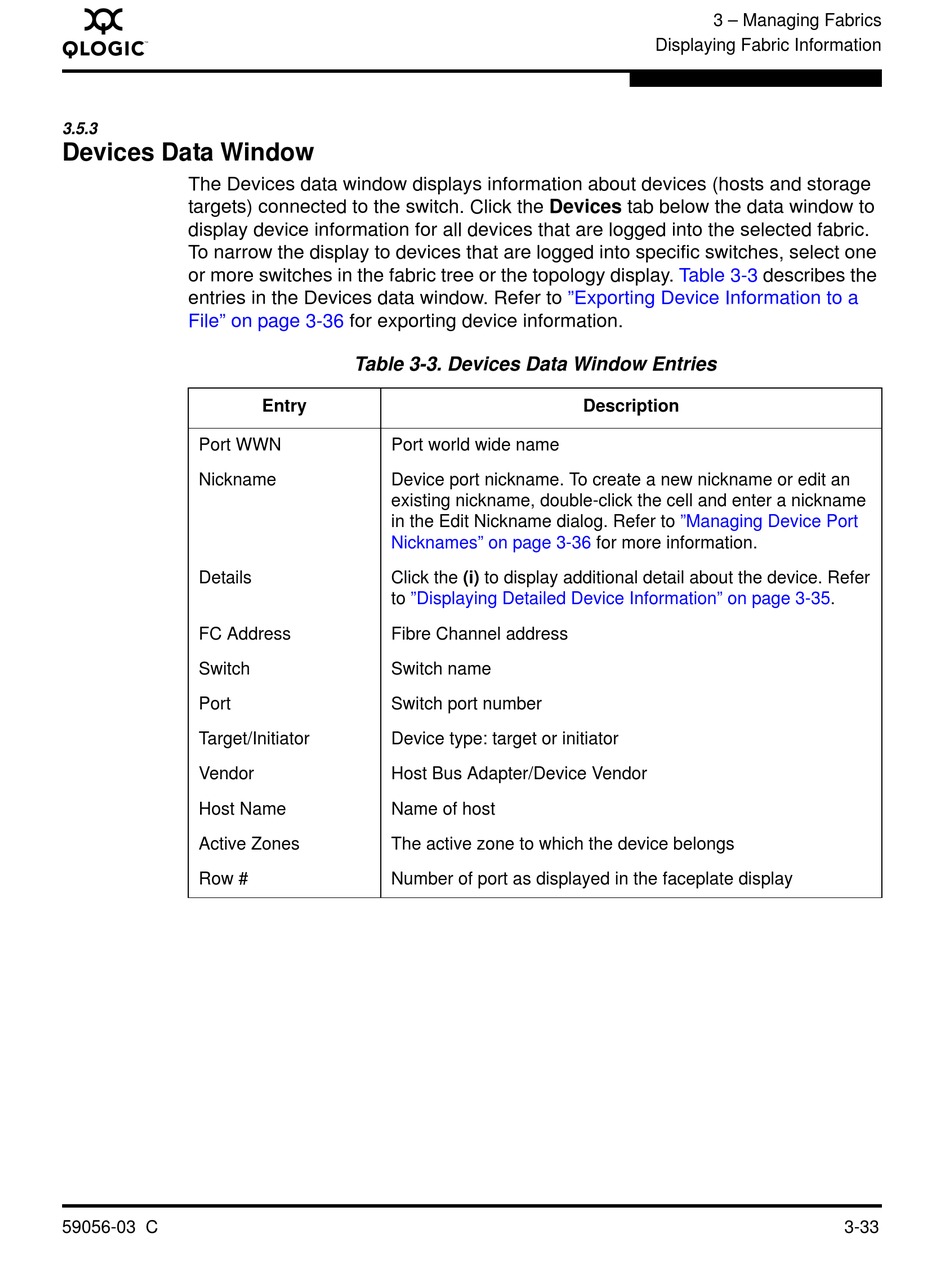

Devices Data Window

The Devices data window displays information about devices (hosts and storage
targets) connected to the switch. Click the Devices tab below the data window to
display device information for all devices that are logged into the selected fabric.
To narrow the display to devices that are logged into specific switches, select one
or more switches in the fabric tree or the topology display.
entries in the Devices data window. Refer to
File" on page 3-36
Port WWN
Nickname
Details
FC Address
Switch
Port
Target/Initiator
Vendor
Host Name
Active Zones
Row #
59056-03 C
for exporting device information.
Table 3-3. Devices Data Window Entries
Entry
Port world wide name
Device port nickname. To create a new nickname or edit an
existing nickname, double-click the cell and enter a nickname
in the Edit Nickname dialog. Refer to
Nicknames" on page 3-36
Click the (i) to display additional detail about the device. Refer
to "Displaying Detailed Device Information" on page
Fibre Channel address
Switch name
Switch port number
Device type: target or initiator
Host Bus Adapter/Device Vendor
Name of host
The active zone to which the device belongs
Number of port as displayed in the faceplate display
3 – Managing Fabrics
Displaying Fabric Information
Table 3-3
"Exporting Device Information to a
Description
"Managing Device Port
for more information.
describes the
3-35.
3-33
