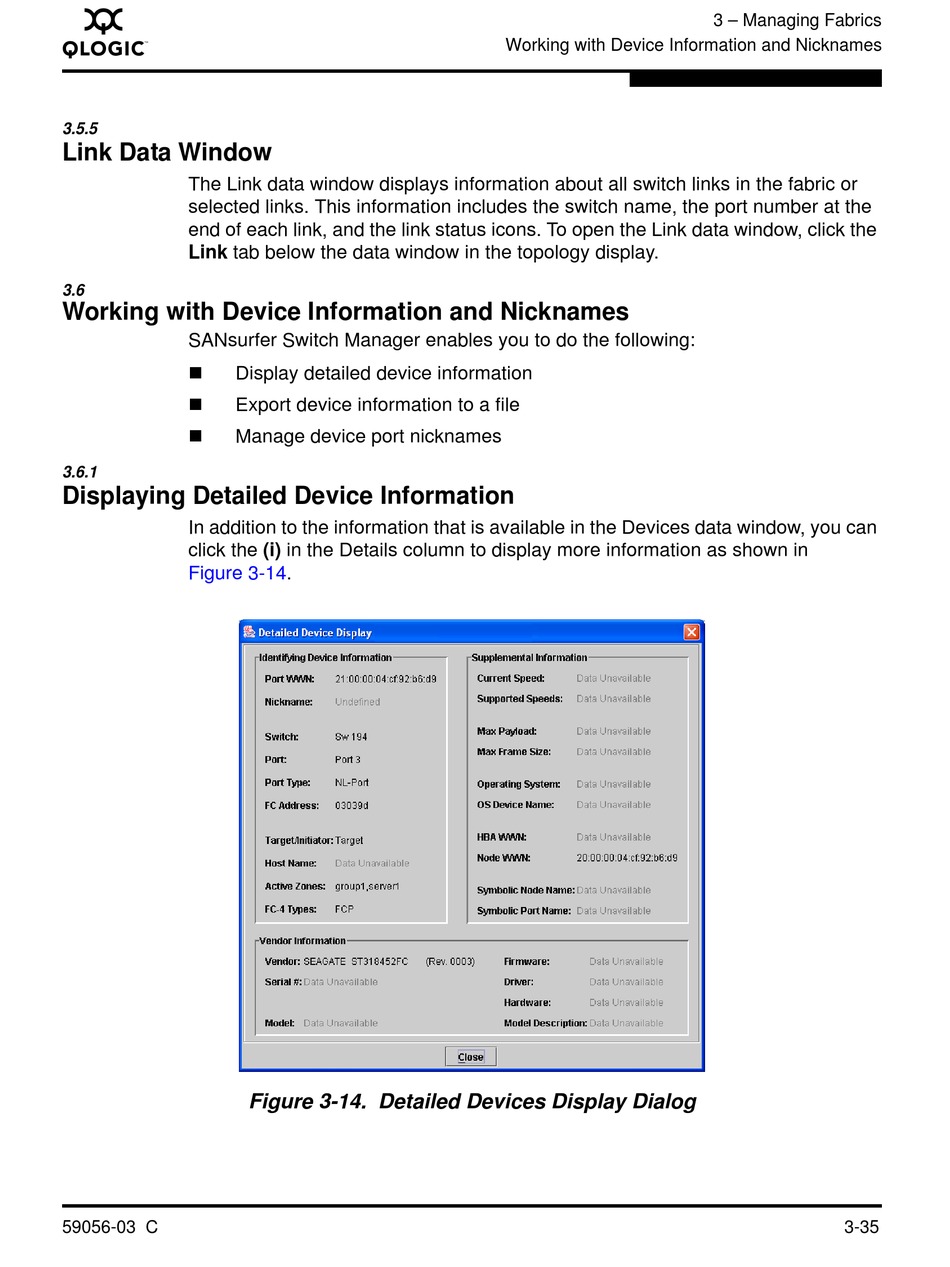

Link Data Window; Working With Device Information And Nicknames; Displaying Detailed Device Information; Detailed Devices Display Dialog - Qlogic SANbox 5200 Series User Manual

A
3.5.5

Link Data Window

The Link data window displays information about all switch links in the fabric or
selected links. This information includes the switch name, the port number at the
end of each link, and the link status icons. To open the Link data window, click the
Link tab below the data window in the topology display.
3.6

Working with Device Information and Nicknames

SANsurfer Switch Manager enables you to do the following:
Display detailed device information
Export device information to a file
Manage device port nicknames
3.6.1

Displaying Detailed Device Information

In addition to the information that is available in the Devices data window, you can
click the (i) in the Details column to display more information as shown in
Figure
59056-03 C
3-14.
Figure 3-14. Detailed Devices Display Dialog
Working with Device Information and Nicknames
3 – Managing Fabrics
3-35
