3 – Managing Fabrics
RADIUS Servers
3.1.4

Modifying Authentication Order RADIUS Server Information

Editing information of a RADIUS server involves changing the configuration of a
RADIUS server.

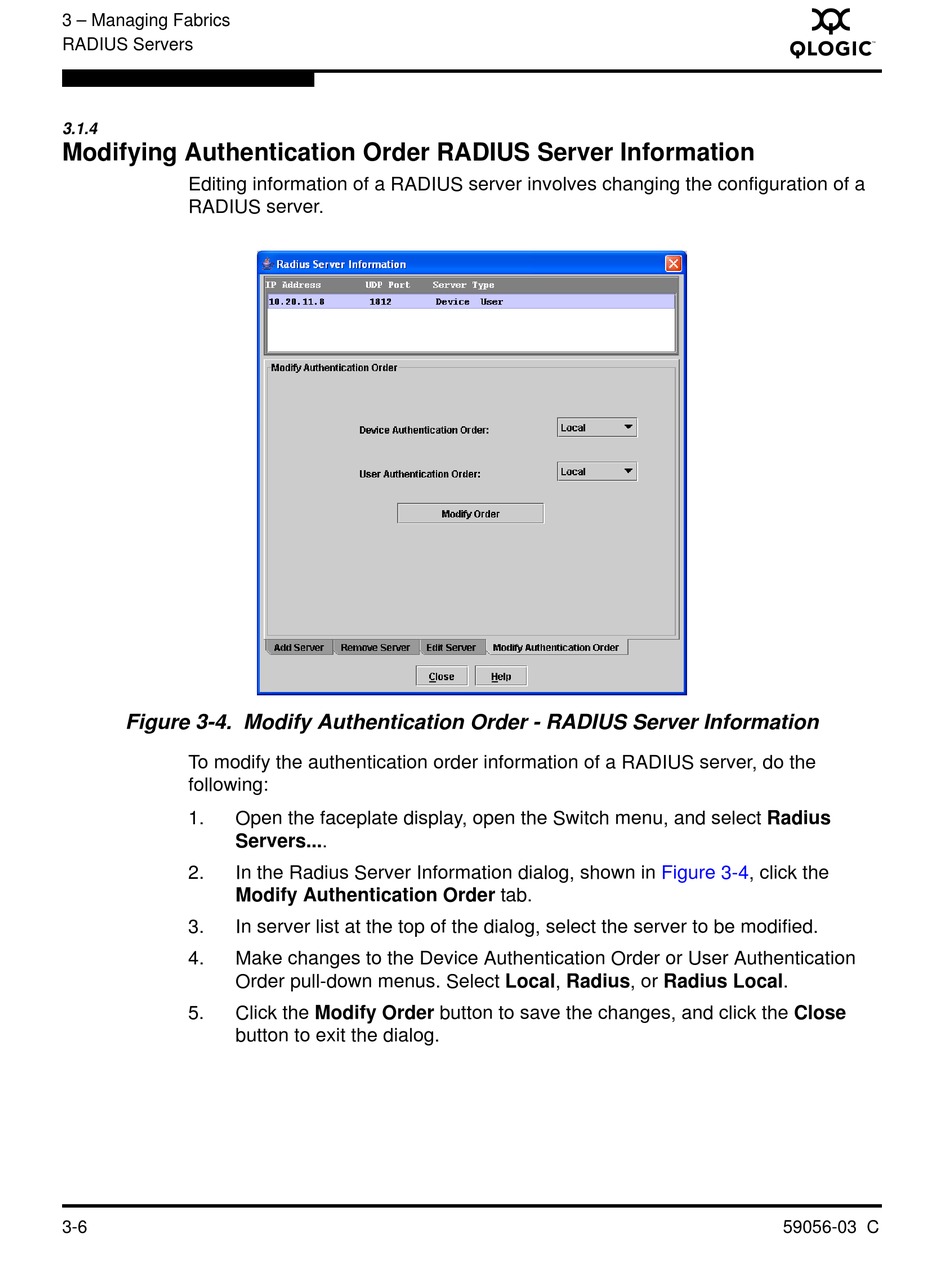

Figure 3-4. Modify Authentication Order - RADIUS Server Information
To modify the authentication order information of a RADIUS server, do the
following:
1. Open the faceplate display, open the Switch menu, and select Radius
Servers....
2. In the Radius Server Information dialog, shown in
Modify Authentication Order tab.
3. In server list at the top of the dialog, select the server to be modified.
4. Make changes to the Device Authentication Order or User Authentication
Order pull-down menus. Select Local, Radius, or Radius Local.
5. Click the Modify Order button to save the changes, and click the Close
button to exit the dialog.
3-6
A
Figure 3-4, click the
59056-03 C
