4 – Managing Switches
Displaying Switch Information
Zoning Default Visibility
Temperature
Security Auto Save
Security Fabric Binding
Enable
Fan 1 Status
Fan 2 Status
Power Supply 1 Status
Power Supply 2 Status
Beacon Status
Broadcast Support
In-band Enabled
Temperature Failure Port
Shutdown
Warning Temperature
Failure Temperature
NTP Client Enabled
NTP Server Address
FDMI HBA Entry Limit
4-10

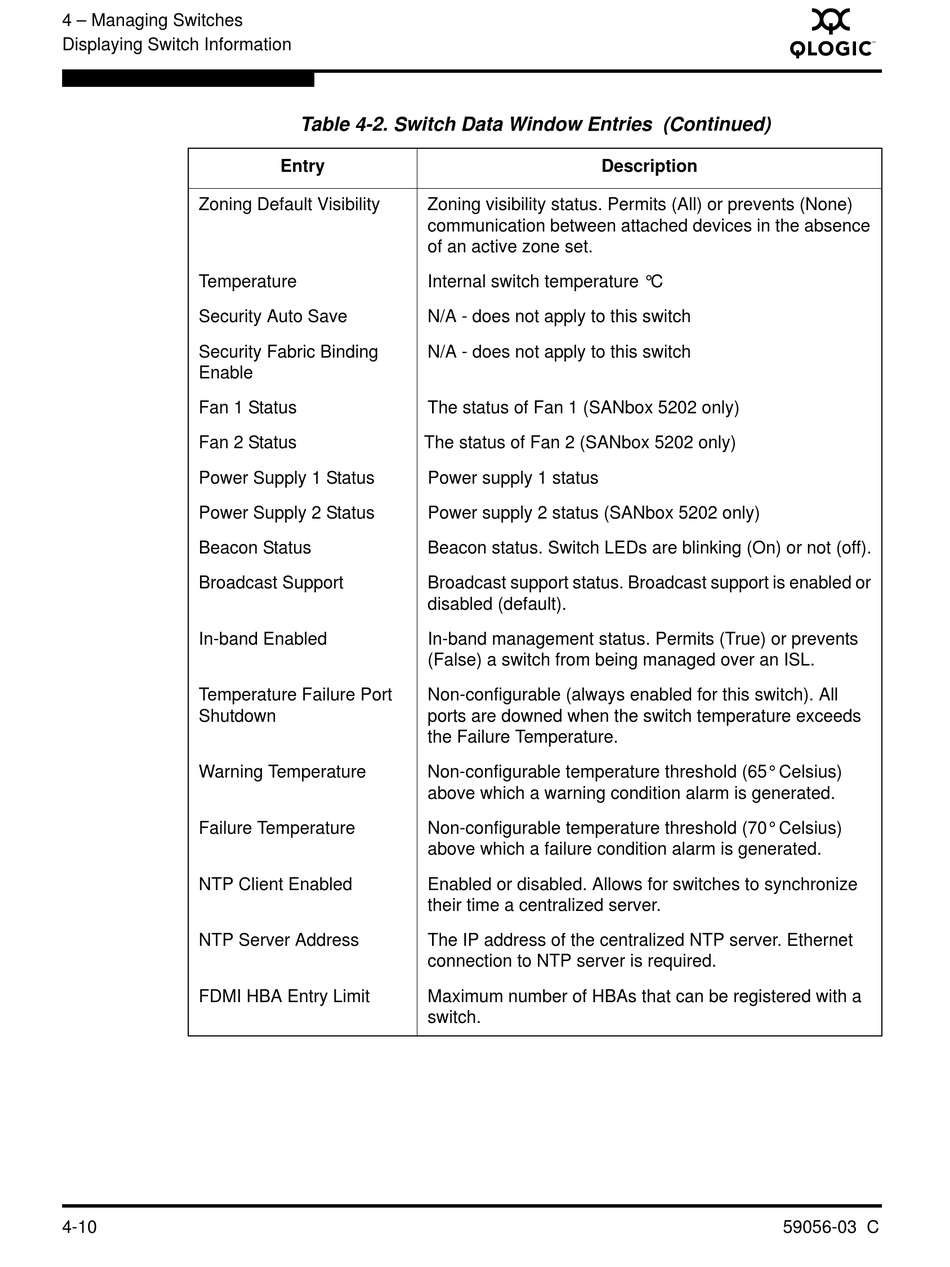

Table 4-2. Switch Data Window Entries (Continued)
Entry
Zoning visibility status. Permits (All) or prevents (None)
communication between attached devices in the absence
of an active zone set.
Internal switch temperature °C
N/A - does not apply to this switch
N/A - does not apply to this switch
The status of Fan 1 (SANbox 5202 only)
The status of Fan 2 (SANbox 5202 only)
Power supply 1 status
Power supply 2 status (SANbox 5202 only)
Beacon status. Switch LEDs are blinking (On) or not (off).
Broadcast support status. Broadcast support is enabled or
disabled (default).
In-band management status. Permits (True) or prevents
(False) a switch from being managed over an ISL.
Non-configurable (always enabled for this switch). All
ports are downed when the switch temperature exceeds
the Failure Temperature.
Non-configurable temperature threshold (65° Celsius)
above which a warning condition alarm is generated.
Non-configurable temperature threshold (70° Celsius)
above which a failure condition alarm is generated.
Enabled or disabled. Allows for switches to synchronize
their time a centralized server.
The IP address of the centralized NTP server. Ethernet
connection to NTP server is required.
Maximum number of HBAs that can be registered with a
switch.
Description
A
59056-03 C
