A

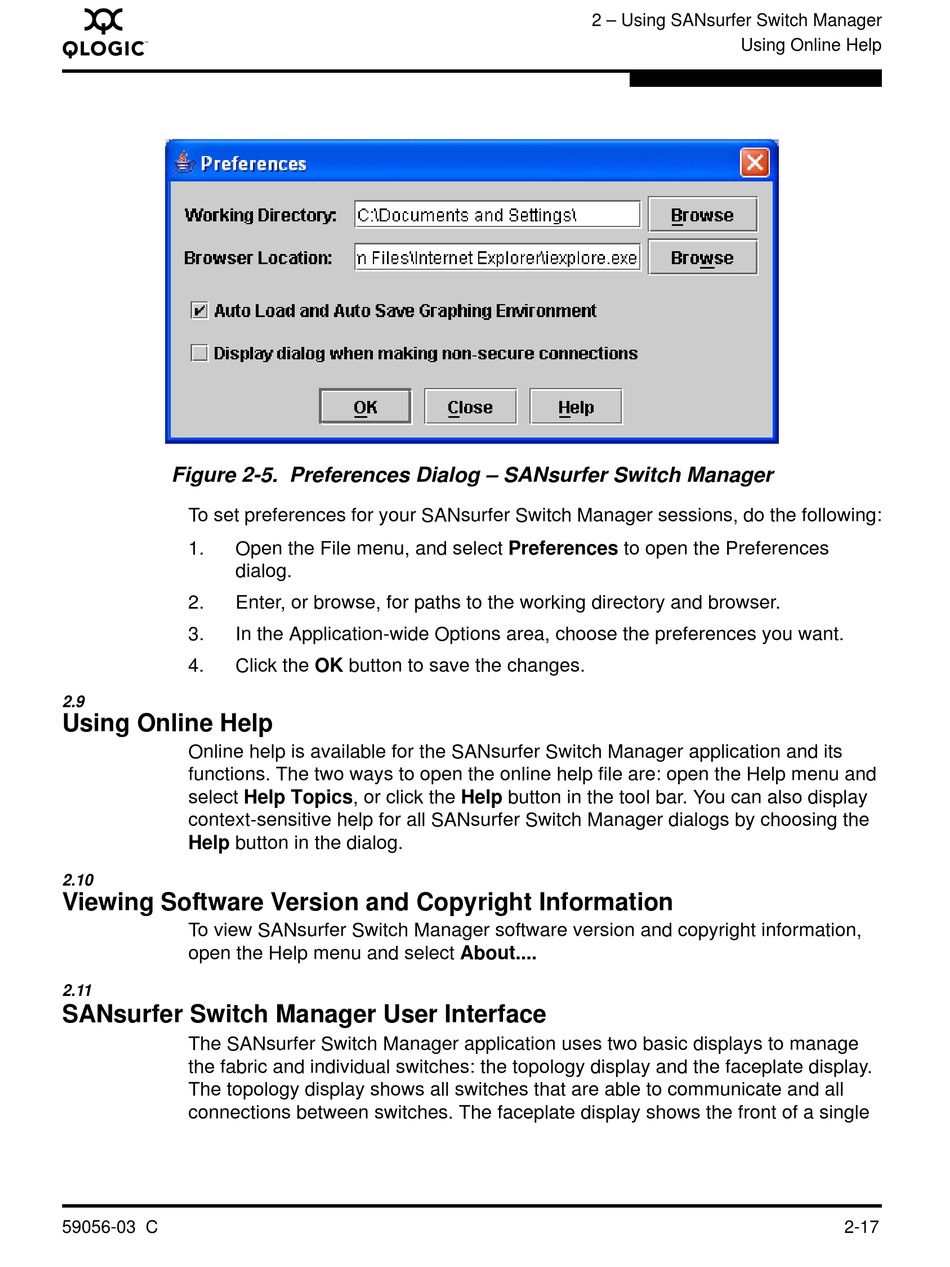

Figure 2-5. Preferences Dialog – SANsurfer Switch Manager
To set preferences for your SANsurfer Switch Manager sessions, do the following:
1.
Open the File menu, and select Preferences to open the Preferences
dialog.
2.
Enter, or browse, for paths to the working directory and browser.
3.
In the Application-wide Options area, choose the preferences you want.
4.
Click the OK button to save the changes.
2.9

Using Online Help

Online help is available for the SANsurfer Switch Manager application and its
functions. The two ways to open the online help file are: open the Help menu and
select Help Topics, or click the Help button in the tool bar. You can also display
context-sensitive help for all SANsurfer Switch Manager dialogs by choosing the
Help button in the dialog.
2.10

Viewing Software Version and Copyright Information

To view SANsurfer Switch Manager software version and copyright information,
open the Help menu and select About....
2.11

SANsurfer Switch Manager User Interface

The SANsurfer Switch Manager application uses two basic displays to manage
the fabric and individual switches: the topology display and the faceplate display.
The topology display shows all switches that are able to communicate and all
connections between switches. The faceplate display shows the front of a single
59056-03 C
2 – Using SANsurfer Switch Manager
Using Online Help
2-17
