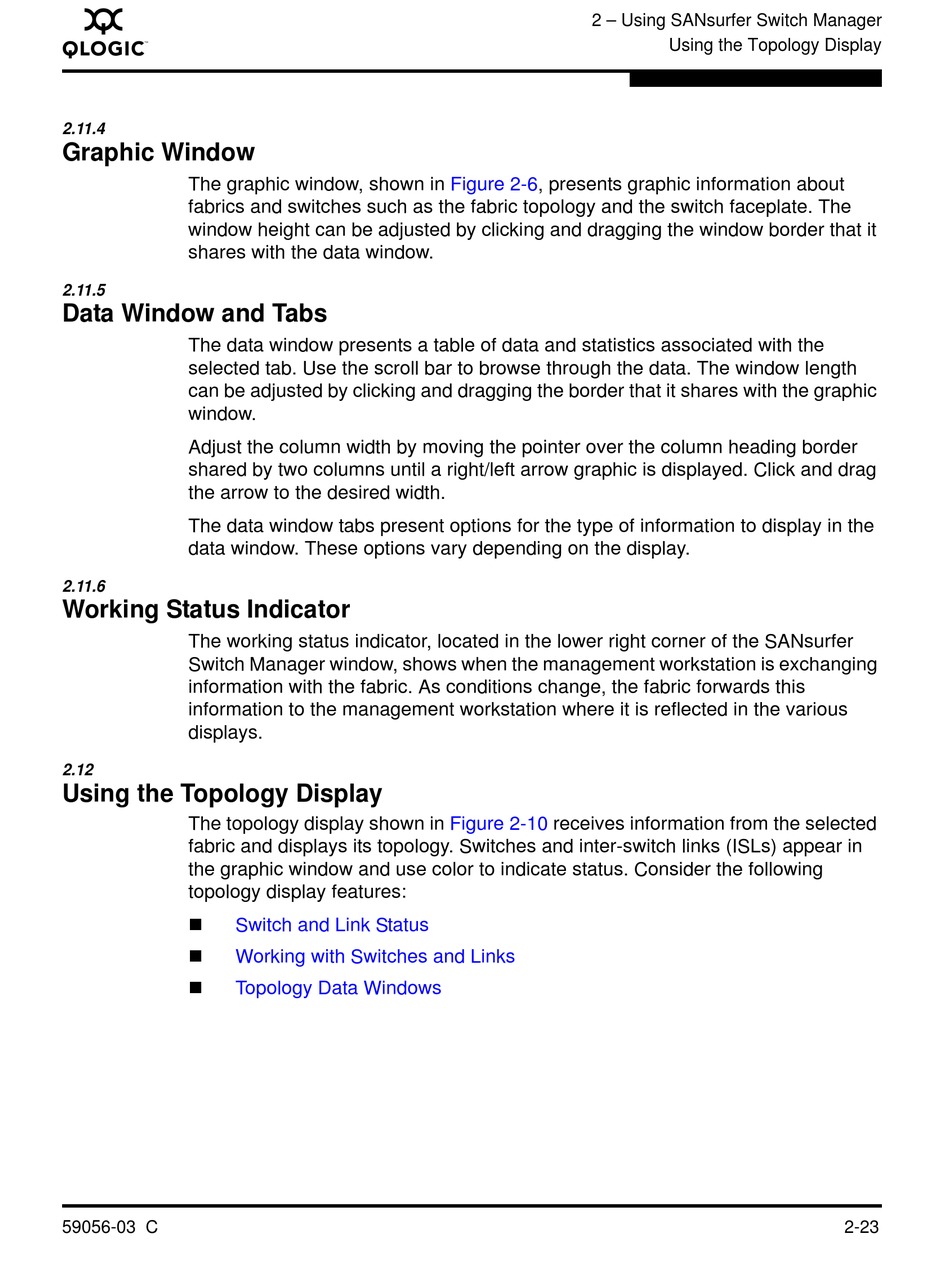

A
2.11.4

Graphic Window

The graphic window, shown in
fabrics and switches such as the fabric topology and the switch faceplate. The
window height can be adjusted by clicking and dragging the window border that it
shares with the data window.
2.11.5

Data Window and Tabs

The data window presents a table of data and statistics associated with the
selected tab. Use the scroll bar to browse through the data. The window length
can be adjusted by clicking and dragging the border that it shares with the graphic
window.
Adjust the column width by moving the pointer over the column heading border
shared by two columns until a right/left arrow graphic is displayed. Click and drag
the arrow to the desired width.
The data window tabs present options for the type of information to display in the
data window. These options vary depending on the display.
2.11.6

Working Status Indicator

The working status indicator, located in the lower right corner of the SANsurfer
Switch Manager window, shows when the management workstation is exchanging
information with the fabric. As conditions change, the fabric forwards this
information to the management workstation where it is reflected in the various
displays.
2.12

Using the Topology Display

The topology display shown in
fabric and displays its topology. Switches and inter-switch links (ISLs) appear in
the graphic window and use color to indicate status. Consider the following
topology display features:
Switch and Link Status
Working with Switches and Links
Topology Data Windows
59056-03 C
2 – Using SANsurfer Switch Manager
Figure 2-6, presents graphic information about
Figure 2-10 receives information from the selected
Using the Topology Display
2-23
