2 – Using SANsurfer Switch Manager
Using the Topology Display
2.12.1

Switch and Link Status

Switch icon shape and color provide information about the switch and its
operational state. Lines represent links between switches. The topology display
uses green to indicate normal operation, yellow to indicate operational with errors,
red to indicate a potential failure or non-operational state, and blue to indicate
unknown, unreachable, or unmanageable. Refer to
for more information about topology display icons.
2-24

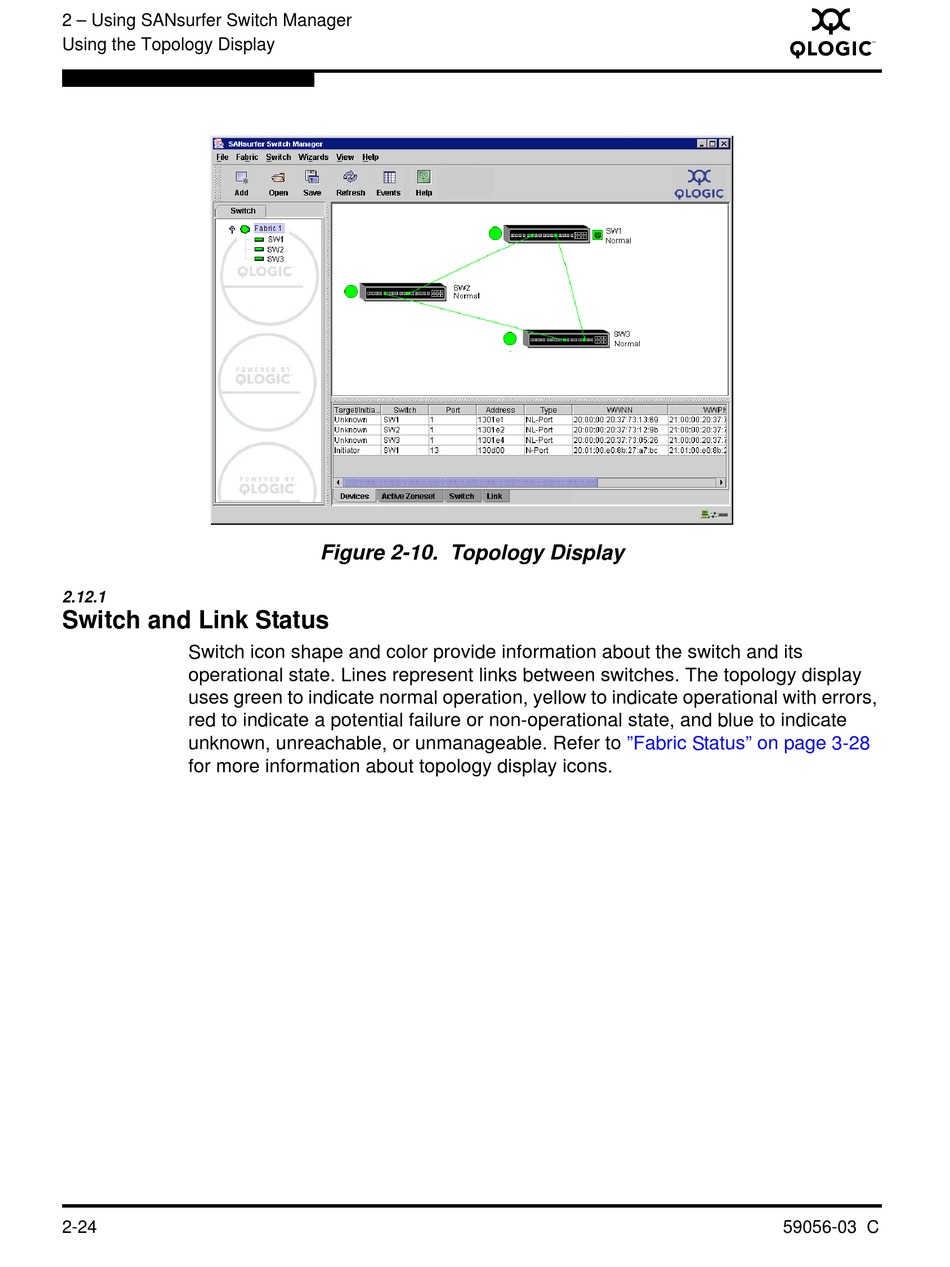

Figure 2-10. Topology Display
A
"Fabric Status" on page 3-28
59056-03 C
