2 – Using SANsurfer Switch Manager
SANsurfer Switch Manager User Interface
2.11.1.2

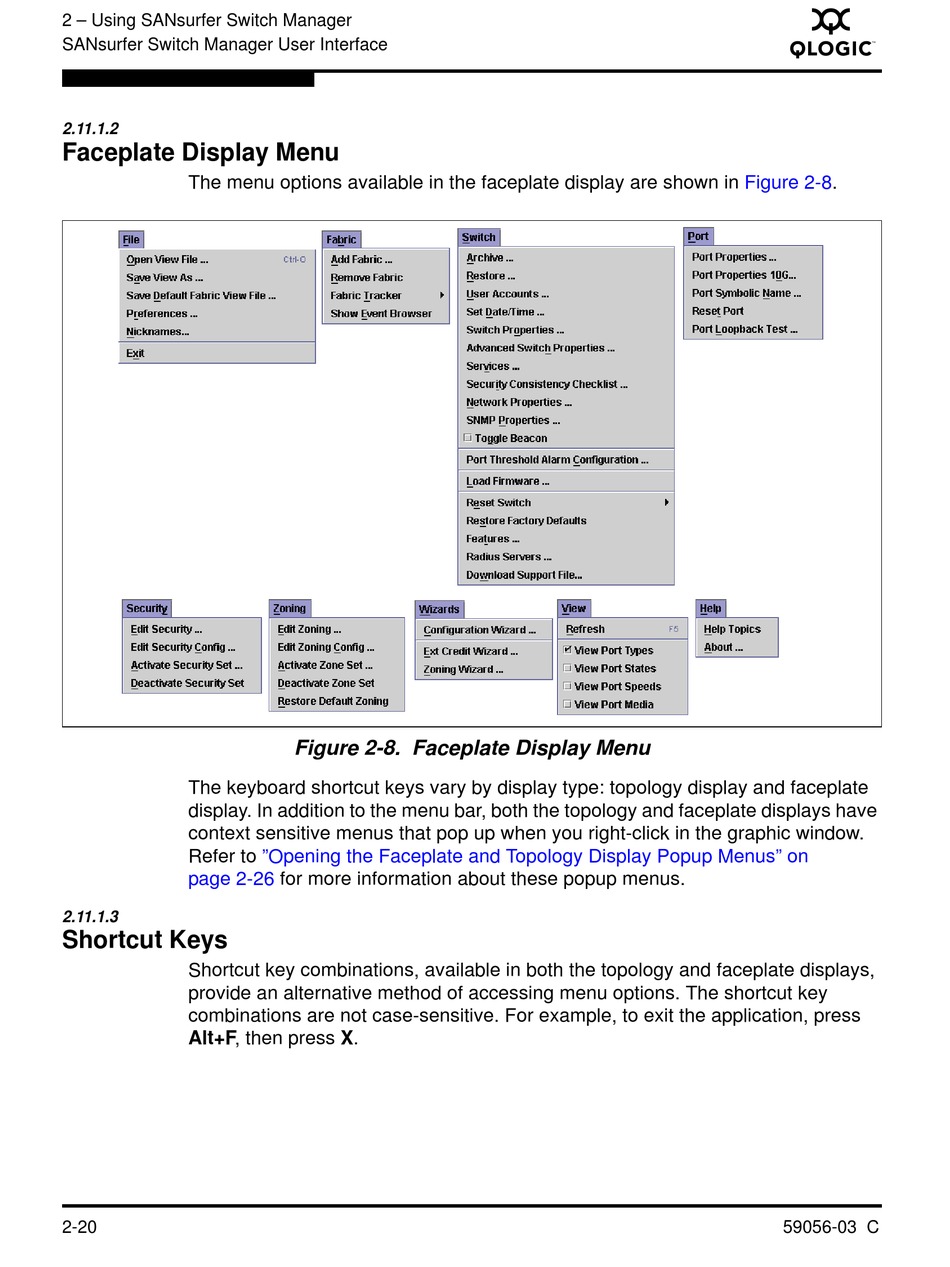

Faceplate Display Menu

The menu options available in the faceplate display are shown in
The keyboard shortcut keys vary by display type: topology display and faceplate
display. In addition to the menu bar, both the topology and faceplate displays have
context sensitive menus that pop up when you right-click in the graphic window.
Refer to
page 2-26
2.11.1.3

Shortcut Keys

Shortcut key combinations, available in both the topology and faceplate displays,
provide an alternative method of accessing menu options. The shortcut key
combinations are not case-sensitive. For example, to exit the application, press
Alt+F, then press X.
2-20
Figure 2-8. Faceplate Display Menu
"Opening the Faceplate and Topology Display Popup Menus" on
for more information about these popup menus.
A
Figure 2-8.
59056-03 C
