Removing The System Memory (Ram); Memory Upgrade Process - EUROCOM D870P Series Service Manual

Disassembly

Removing the System Memory (RAM)

The computer has two memory sockets for 200 pin Small Outline Dual In-line Memory Modules (SO-DIMM) supporting
DDR 200/266 MHz. The main memory can be expanded up to 1024MB. The SO-DIMM modules supported are 128Mb,
256Mb, and 512Mb. The total memory size is automatically detected by the POST routine once you turn on your com-
puter.

Memory Upgrade Process

1. Turn off the computer, remove the battery
2. Remove screws
3. Carefully lift up the memory socket cover
can disconnect it or leave it attached).

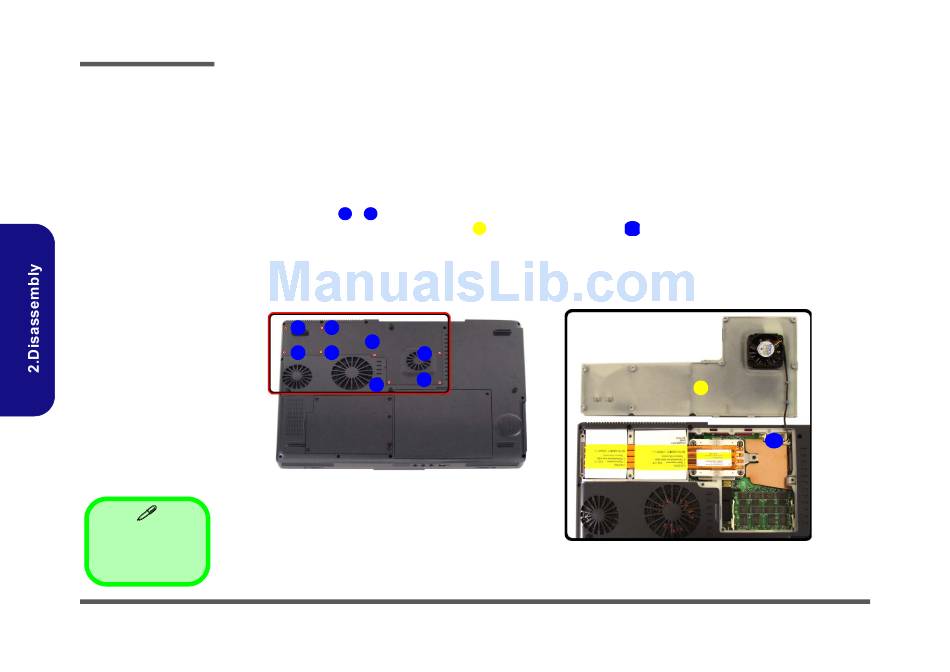

Figure 2
4. If there is a module currently installed which needs to be upgraded/replaced then remove it.
Memory Socket
Cover Removal
a. Remove the screws.
b. Carefully lift the cover off
the computer.
9. Socket Cover
• 8 Screws
2 - 6 Removing the System Memory (RAM)
- (Figure 2a) from the memory socket cover
1 8
a.
7 8
4
6 5
1
2
3
(page 2 - 5).
.
(Figure 2b) (a fan cable is still attached to the mainboard and you
9 10 10
b.
9
10
