Introduction
External Locator - Front & Left Side Views

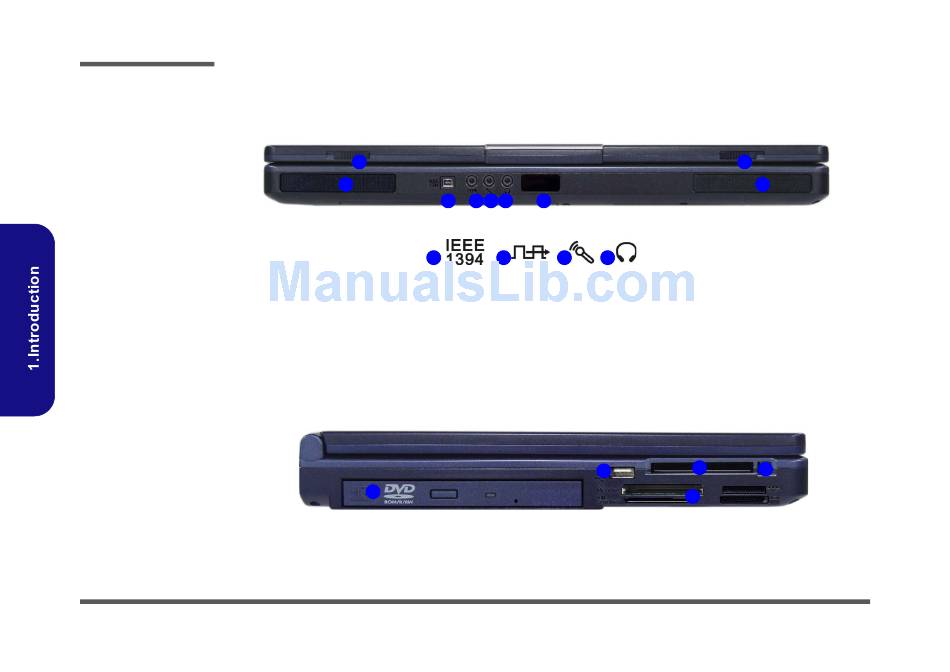

Figure 2
Front View
1. LCD Latches
2. Mini-IEEE 1394 Port
3. S/PDIF Out Port
4. Microphone-In Jack
5. Headphone-Out
Jack
6. Infrared Transceiver
7. Built-In Speakers
Figure 3
Left Side View
1. Bay Two - CD/DVD
Device Bay
2. PC Card Slot
3. PC Card Slot Eject
Button
4. USB 2.0/1.1 Port
5. Bay One - Optional
for 7-In-1 Card
Reader (pictured)
OR Sub Woofer
1 - 6 External Locator - Front & Left Side Views
1
7
2 3 4 5
2 3
1
6
4 5
2
4
5
1
7
3
