Mainboard Overview - Bottom (Connectors)

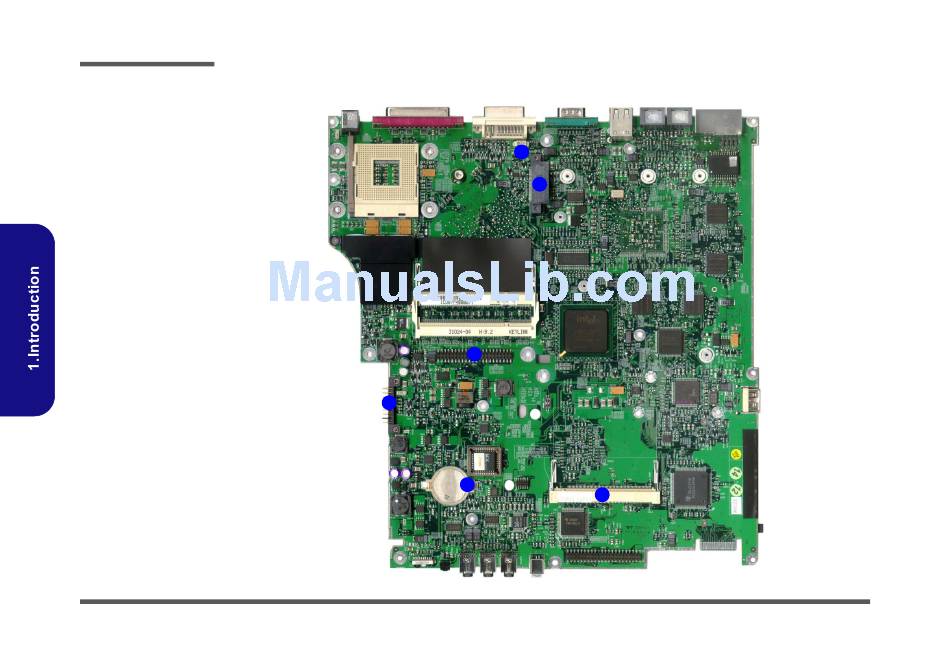

Figure 10
Mainboard Bottom
Connectors
1. DDR RAM Fan
Connector
(JFAN3)
2. CD-ROM Device
Connector
(JCDROM1)
3. Hard Disk Cable
Connector
(JHDD1)
4. Mini-PCI
(Wireless Lan
Module)
Connector
(CN10)
5. Battery
Connector (CN9)
6. CMOS Battery
Connector (BAT1)
1 - 12 Mainboard Overview - Bottom (Connectors)
1
2
3
5
6
4
