Disassembly

Removing the CD/DVD Device (Bay Two)

The easy changeable CD device may be upgraded or changed.
1. Turn off the computer, remove the battery
2. Remove screws
3. Carefully lift up the memory socket cover
disconnect it or leave it attached).
4. Use a screwdriver to carefully push the CD/DVD device assembly

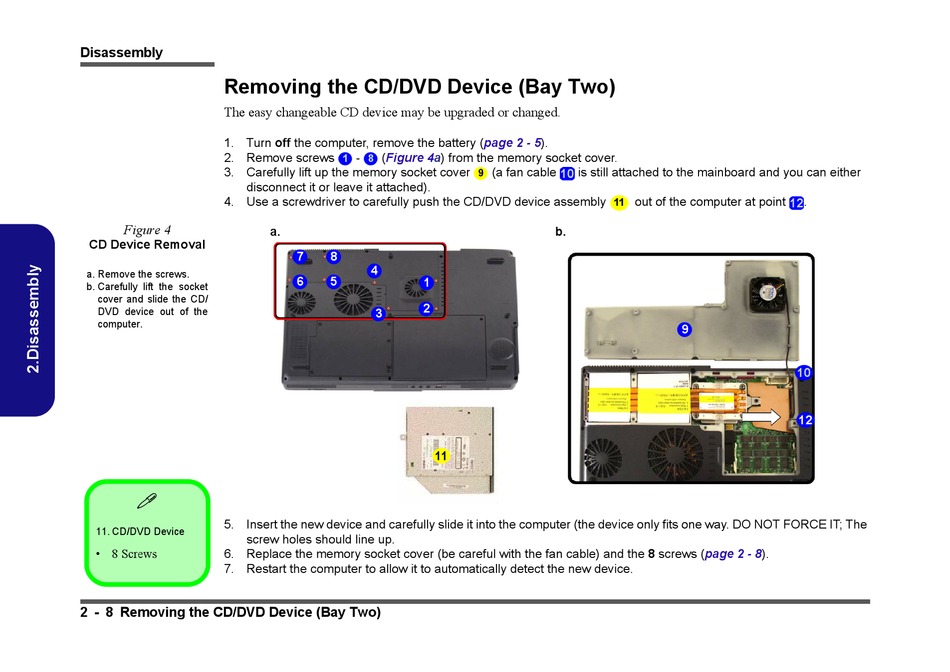

Figure 4
CD Device Removal
a. Remove the screws.
b. Carefully lift the socket
cover and slide the CD/
DVD device out of the
computer.
5. Insert the new device and carefully slide it into the computer (the device only fits one way. DO NOT FORCE IT; The
11. CD/DVD Device
screw holes should line up.
• 8 Screws 6. Replace the memory socket cover (be careful with the fan cable) and the 8 screws
7. Restart the computer to allow it to automatically detect the new device.
2 - 8 Removing the CD/DVD Device (Bay Two)
- (Figure 4a) from the memory socket cover
1 8
a.
7 8
4
6 5
1
2
3
11
(page 2 - 5).
.
(a fan cable is still attached to the mainboard and you can either
10
9 10
out of the computer at point
11
b.
.
12 10
9
10
12
(page 2 - 8).
