System Map: Front & Rear Views
2
3
Note that the HDMI Port supports video and audio signals to attached external displays (al-
so see "HDMI Audio Configuration" on page C -
Note that the connections to the USB ports only fit one way, do not force them. USB 3.0
ports are denoted by their blue color; USB 2.0 ports are colored black. Note that the USB
3.0 port requires a driver installation (see
under DOS.
4
5

HDMI Port
17).
USB 3.0 Ports & USB Port Power
"USB 3.0" on page 4 -
1
2
6
6) and is not operational
System Map: Front & Rear Views 1 - 15
Quick Start Guide

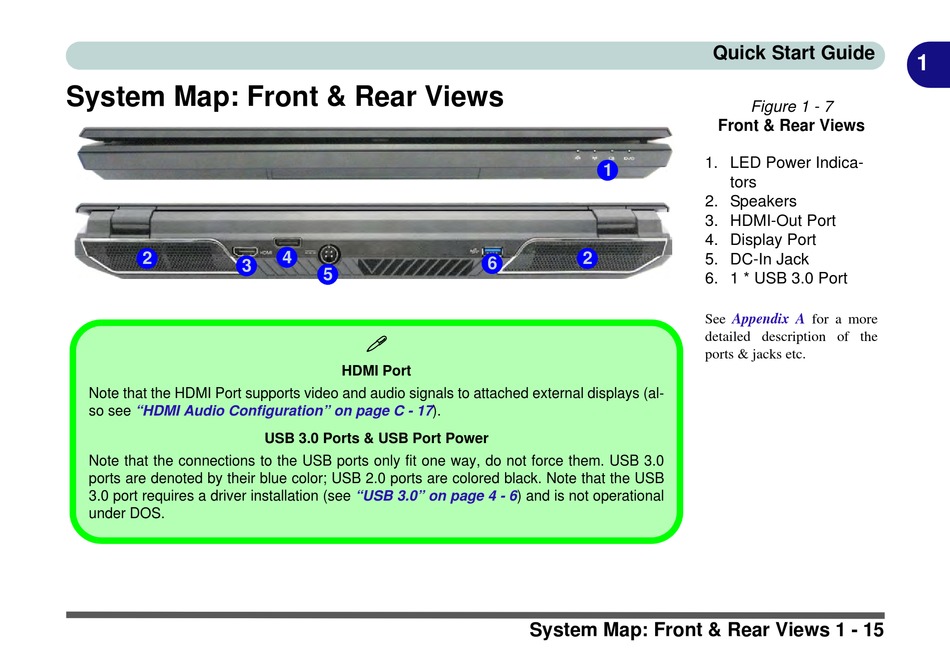

Figure 1 - 7
Front & Rear Views
1. LED Power Indica-
tors
2. Speakers
3. HDMI-Out Port
4. Display Port
5. DC-In Jack
6. 1 * USB 3.0 Port
See Appendix A for a more
detailed description of the
ports & jacks etc.
1
