Quick Start Guide
1

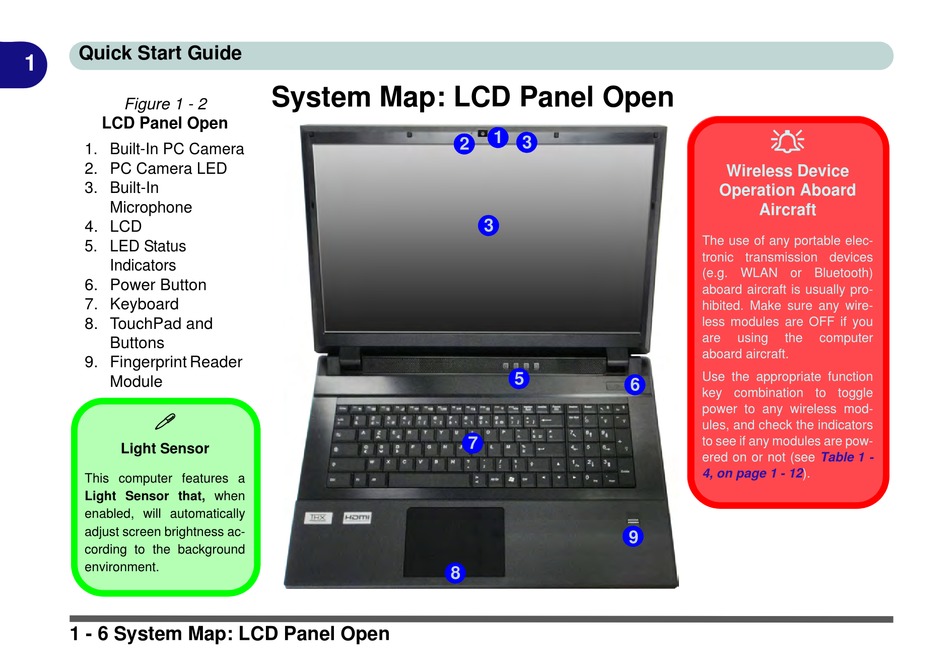

Figure 1 - 2
LCD Panel Open
1. Built-In PC Camera
2. PC Camera LED
3. Built-In
Microphone
4. LCD
5. LED Status
Indicators
6. Power Button
7. Keyboard
8. TouchPad and
Buttons
9. Fingerprint Reader
Module

Light Sensor
This computer features a
Light Sensor that, when
enabled, will automatically
adjust screen brightness ac-
cording to the background
environment.

1 - 6 System Map: LCD Panel Open

System Map: LCD Panel Open
8
1
3
2
3
5
6
7
9

Wireless Device
Operation Aboard
Aircraft
The use of any portable elec-
tronic transmission devices
(e.g. WLAN or Bluetooth)
aboard aircraft is usually pro-
hibited. Make sure any wire-
less modules are OFF if you
are using the computer
aboard aircraft.
Use the appropriate function
key combination to toggle
power to any wireless mod-
ules, and check the indicators
to see if any modules are pow-
ered on or not (see Table 1 -
4, on page 1 - 12).
