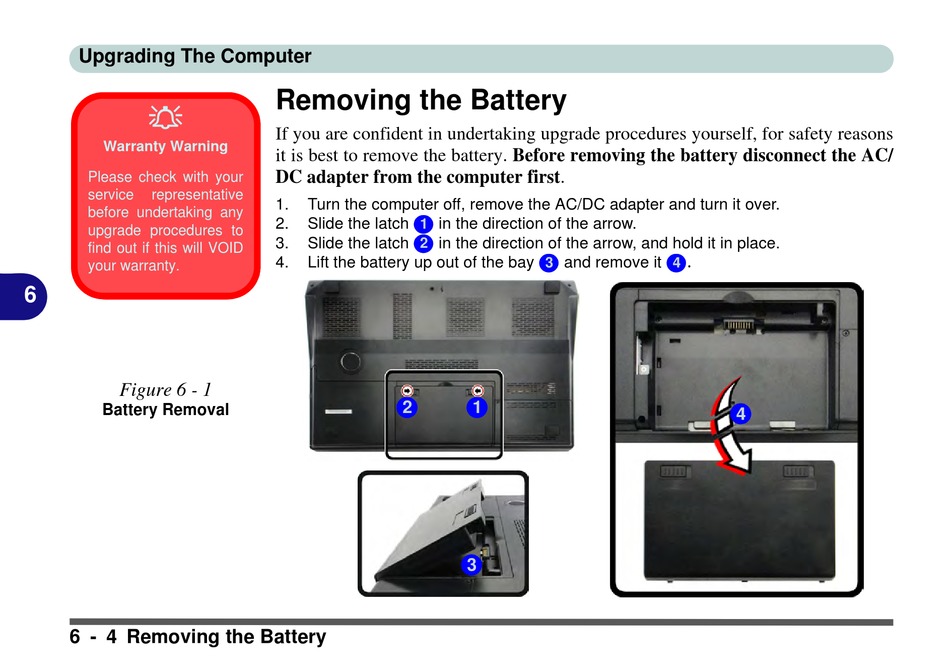

Removing The Battery - EUROCOM Notebook Manual

Upgrading The Computer

Warranty Warning
Please check with your
service representative
before undertaking any
upgrade procedures to
find out if this will VOID
your warranty.
6
Figure 6 - 1
Battery Removal

6 - 4 Removing the Battery

Removing the Battery
If you are confident in undertaking upgrade procedures yourself, for safety reasons
it is best to remove the battery. Before removing the battery disconnect the AC/
DC adapter from the computer first.
1. Turn the computer off, remove the AC/DC adapter and turn it over.
2. Slide the latch in the direction of the arrow.
1
3. Slide the latch in the direction of the arrow, and hold it in place.
2
4. Lift the battery up out of the bay
2
3 and remove it
1
3
.
4
4
