TD-260 Mini-Tower

To remove the side panel:
1. Remove the two screws that fasten the side panel to the back of the base unit.

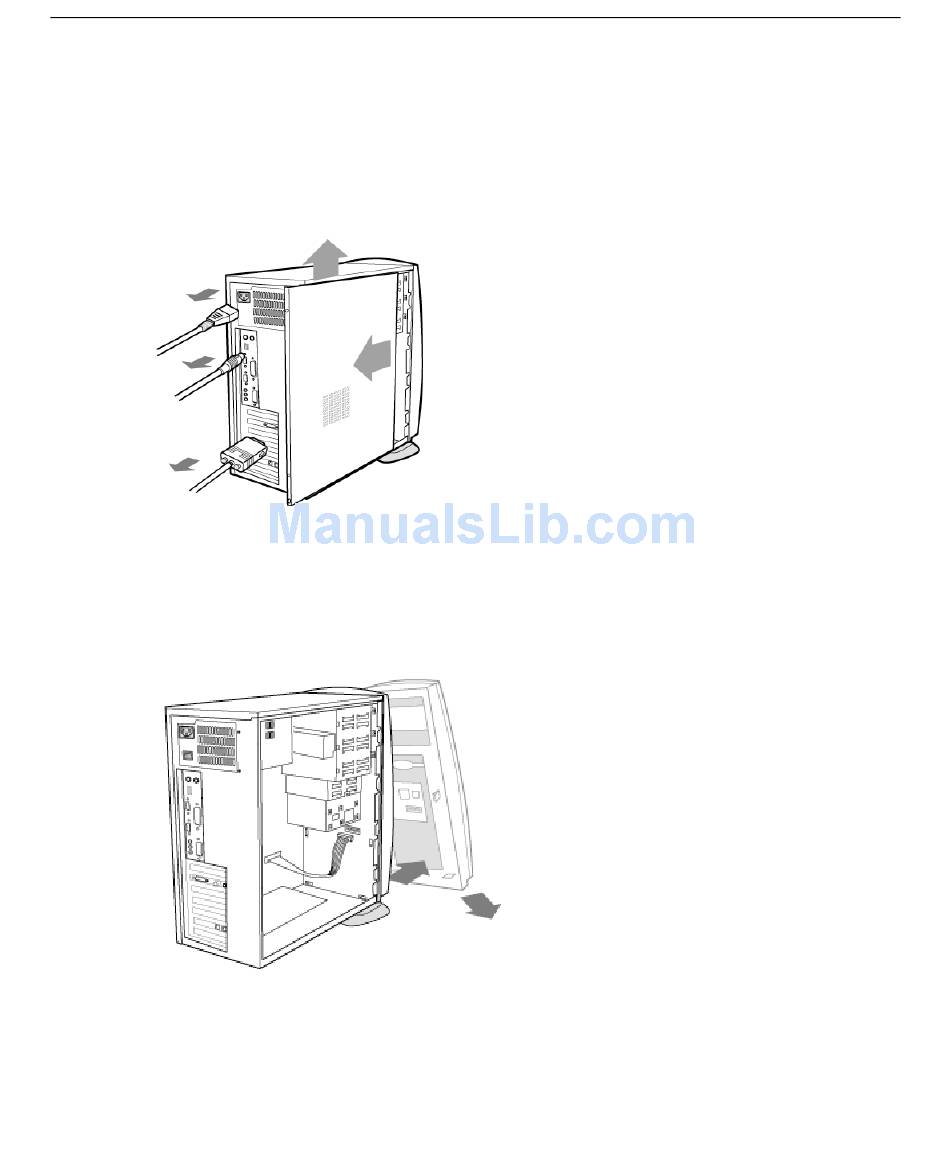

2. Pull the side panel back and then up to remove, as shown in the following figure.
To remove the front panel:
1. Disconnect the front panel cable as shown in the following figure.
2. Loosen the tab as shown the following figure.
3. Pull down and out to remove the front panel as shown in the following figure.
CAUTION Place the power and data cables to the side of the fan bracket. This prevents both the fan
blades and the processor heat sinks from damaging the cables.
CAUTION While the base unit is open, follow the guidelines in "Taking Antistatic Precautions."
