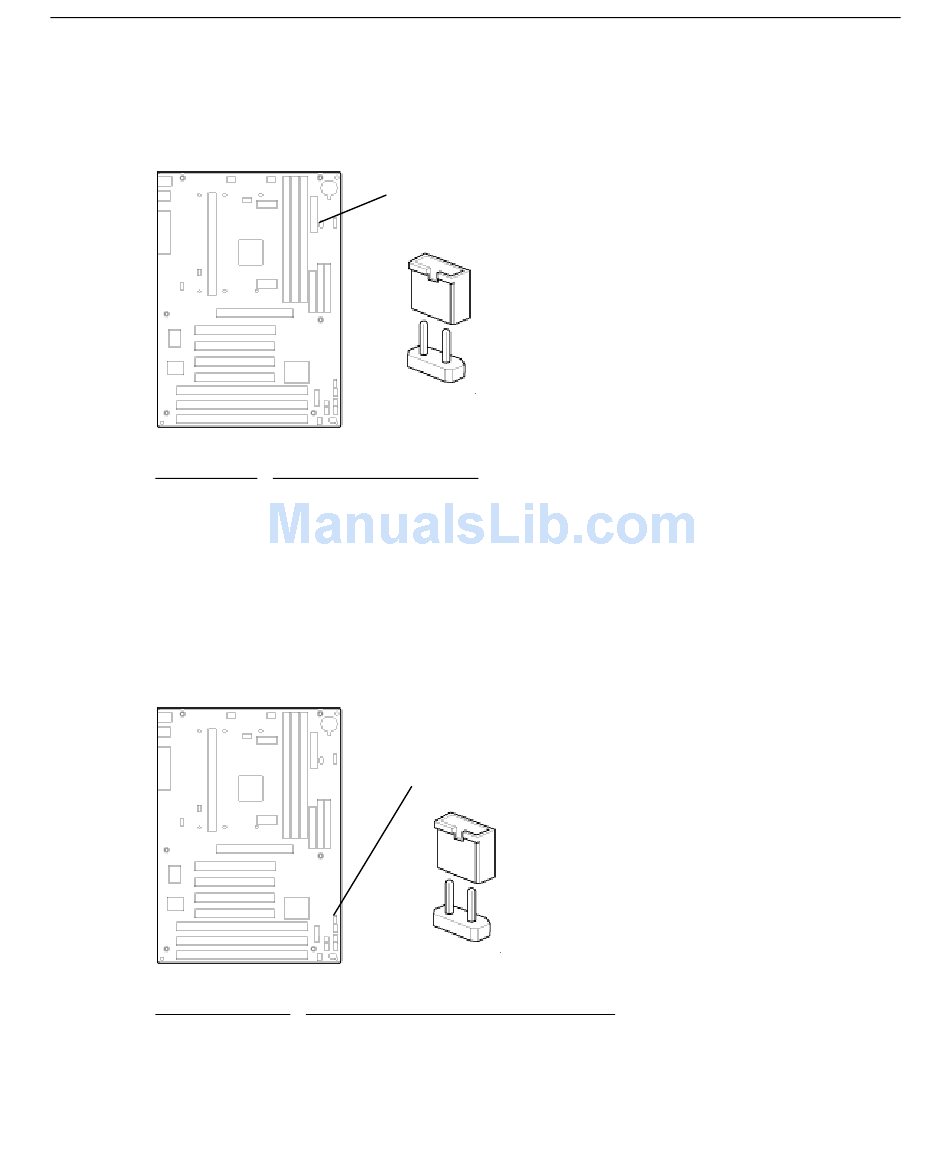

In-Order Queue Depth Selection Jumper (J26)

You can use jumper connector 26 (J26) to set the depth of the In-Order Queue.
Jumper 26
Open
Closed

Power Loss Condition Selection Jumper (J36)

When power returns after a power outage, jumper connector 36 (J36) selects whether the
system will be restored to a full-on condition (power loss condition disabled) or to the previous
state before power failure (power loss condition enabled).
Jumper 36
Pins 1, 2 closed
Pins 2, 3 closed
Jumper 26
In Order Queue Depth
4 (Default)
1
Jumper 36
Power Loss Condition
Power loss condition enabled (default)
Power loss condition disabled
