TDS2000C and TDS1000C-EDU Series Oscilloscope User Manual
Cursor Movement. Use the multipurpose knob to move Cursor 1 or Cursor 2.
You can move the cursors only while the Cursor Menu is displayed. The active
cursor is represented by a solid line.

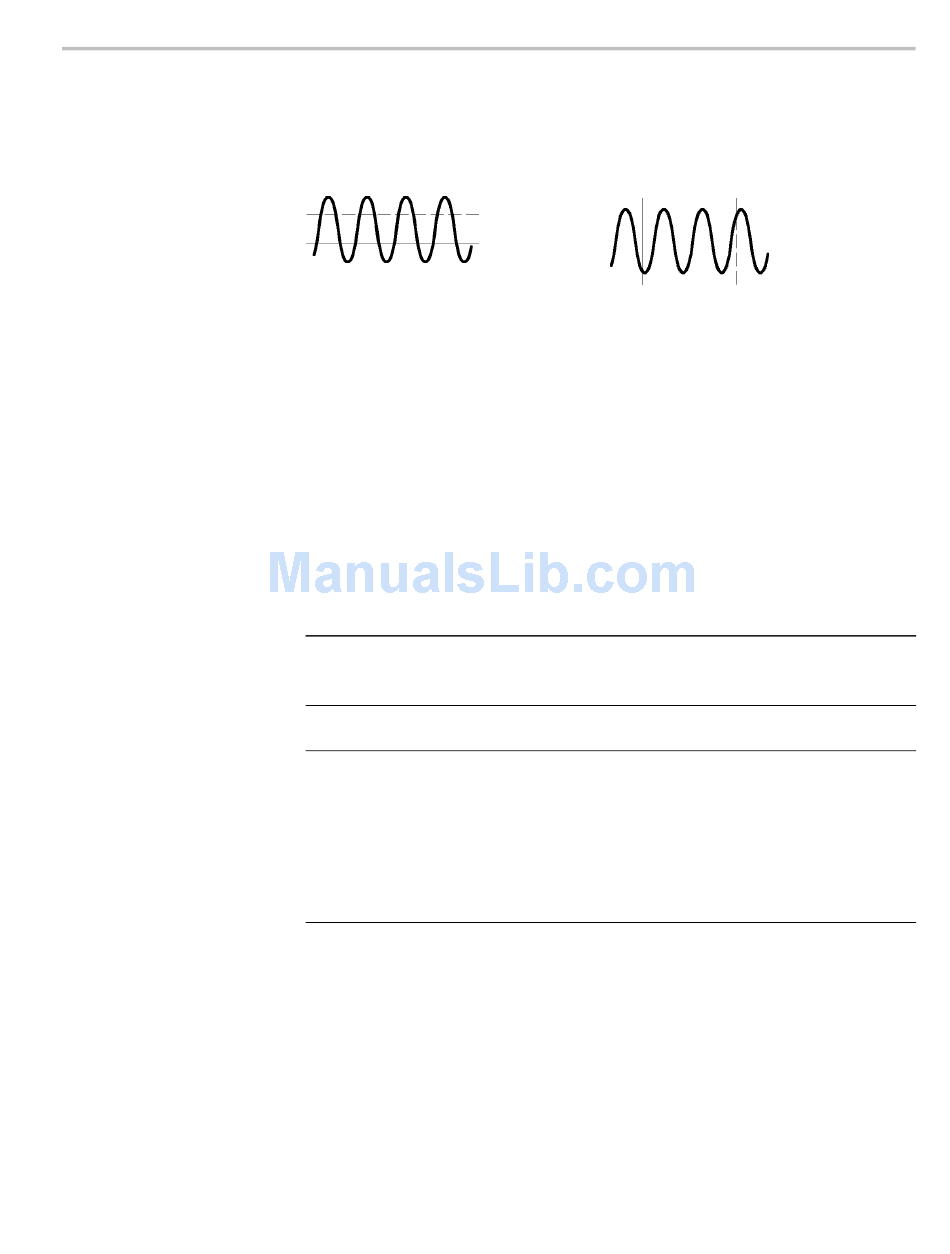

Amplitude cursors
Push the Default Setup button to recall most of the factory option and control
settings, but not all. Appendix D lists the default settings that will be recalled.
Push the Display button to choose how waveforms are presented and to change
the appearance of the entire display.
Options Settings
Type Vectors, Dots
Persist OFF, 1 sec, 2 sec,
5 sec, Infinite
Format YT, XY
Depending on the type, waveforms will be displayed in three different styles:
solid, dimmed, and broken.
Time cursors
Comments
Vectors fill the space between adjacent
sample points in the display
Dots display only the sample points
Sets the length of time each displayed
sample point remains displayed
YT format displays the vertical voltage in
relation to time (horizontal scale)
XY format displays a dot each time a sample
is acquired on channel 1 and channel 2
Channel 1 voltage or current determines the
X coordinate of the dot (horizontal) and the
channel 2 voltage or current determines the
Y coordinate (vertical)
Reference
83
