Roll mode is not a button- or menu-selected mode, but is present when the trigger mode is Auto and the horizontal scale
and record lengths are set as follows:

Table 5: Roll mode is enabled when:

Horizontal scale setting
40 ms/div
400 ms/div

Roll mode tips

Push Run/Stop to halt Roll mode.
•
• Roll mode is disabled under the following conditions:
• When using Reference, Math, or FFT waveforms
• Using the Zoom and Search function
• Taking measurements (Measure menu)
• When trigger mode is changed to Normal
• When horizontal scale is set to 40 ms/division or higher (for 5 M record lengths, this is limited to 400 ms/division or
higher)
Note: The Average acquisition mode is unavailable when you are using Roll mode.

Setting the oscilloscope to factory default values - Default Setup

Default Setup clears the current oscilloscope settings and loads factory-defined settings. This lets you quickly reset the
oscilloscope to a known state before setting up to take a new measurement.
See Setting the oscilloscope to factory default values - Default Setup

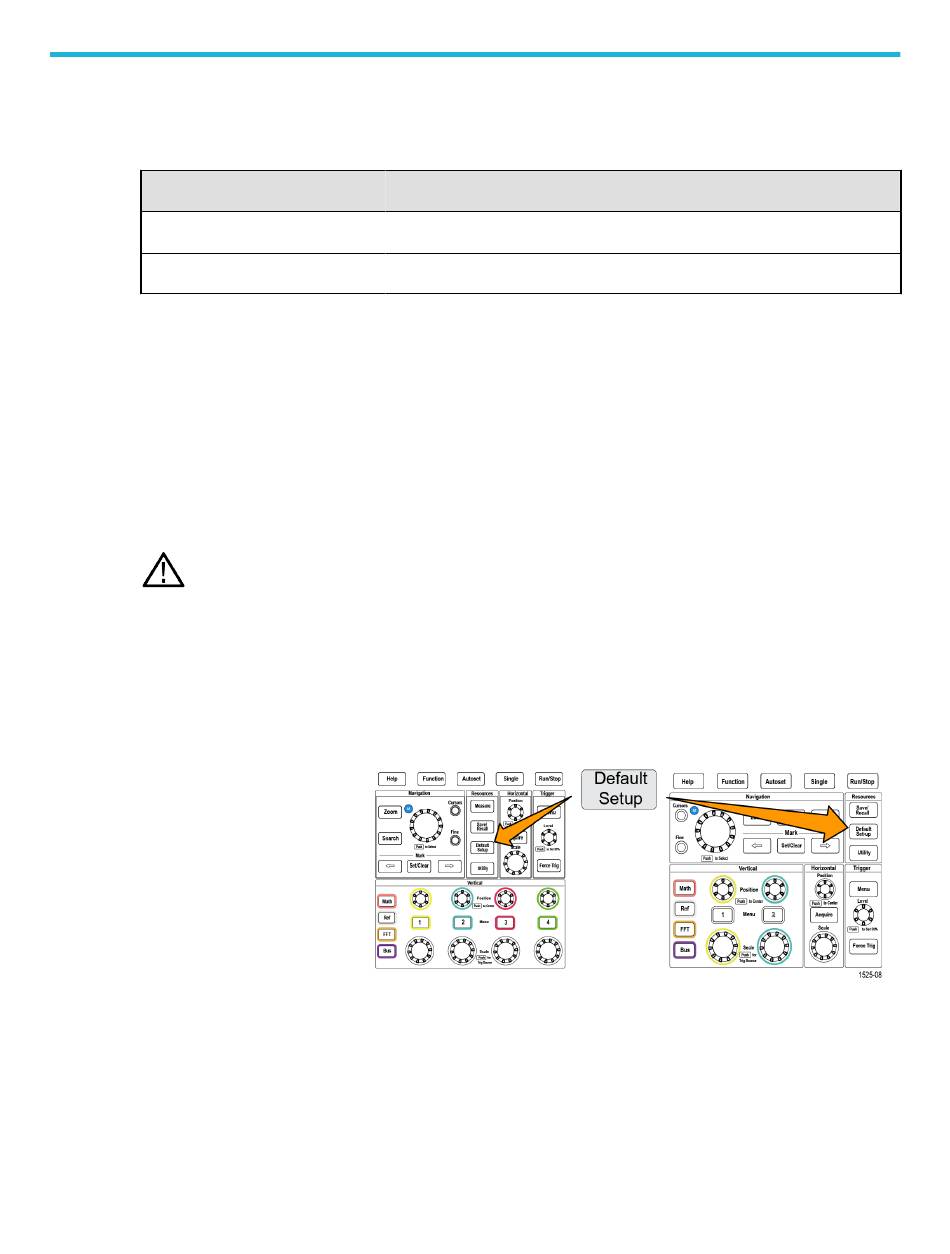

To return the oscilloscope to its factory default settings:
Push Default Setup.
TBS2000B Series Oscilloscopes User Manual
Record length (number of samples)
1000, 2000, 20k, 200k, 2M
5M
on page 73.
Acquisition setup
73
