Application Examples

Taking Simple Measurements

Using Autoset
30
You need to see a signal in a circuit, but you do not know the amplitude or
frequency of the signal. You want to quickly display the signal and measure the
frequency, period, and peak-to-peak amplitude.
To quickly display a signal, follow these steps:
1. Push the 1 (channel 1 menu) button.
2. Push Probe ► Voltage ►Attenuation ► 10X.
3. If using P2220 probes, set their switches to 10X.

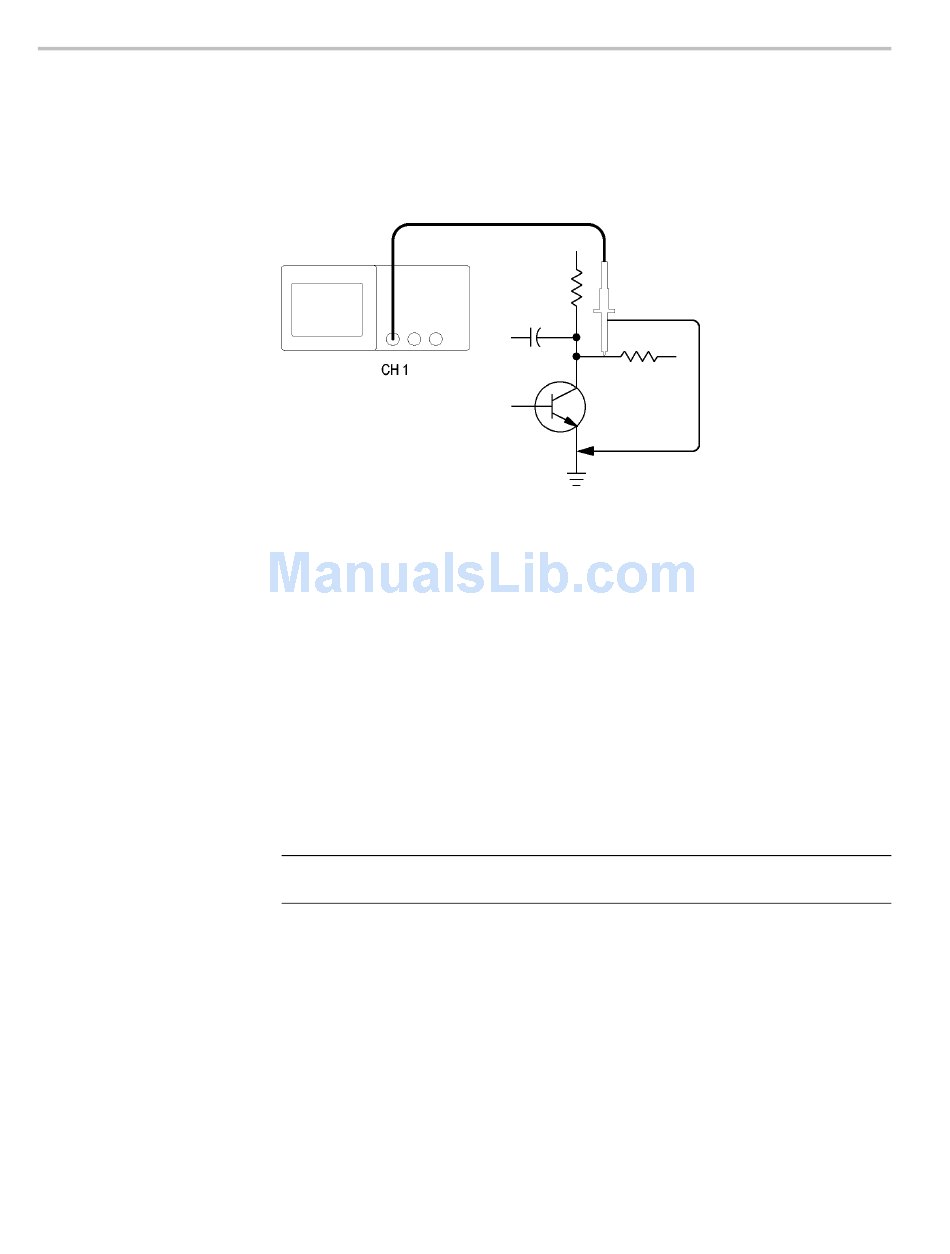

4. Connect the channel 1 probe tip to the signal. Connect the reference lead to
the circuit reference point.
5. Push the AutoSet button.
The oscilloscope sets the vertical, horizontal, and trigger controls automatically.
If you want to optimize the display of the waveform, you can manually adjust
these controls.
NOTE.
The oscilloscope displays relevant automatic measurements in the
waveform area of the screen based on the signal type that is detected.
For oscilloscope-specific descriptions, refer to the Reference chapter. (See
page 79, Autoset.)
TDS2000C and TDS1000C-EDU Series Oscilloscope User Manual
