Connecting the Cables

All cable ports on the base unit and other Intergraph Computer Systems equipment are keyed or
molded and labeled to ensure proper cable attachment. If a cable is not attaching easily, ensure
that you are aligning the cable connector correctly with the port.
WARNING If you do not use cables from Intergraph Computer Systems, you must use
shielded cables to prevent excessive electromagnetic interference (EMI).
Intergraph Computer Systems cables are designed to reduce the amount of
EMI produced by the system.
NOTE While Intergraph Computer Systems recommends disconnecting the cables from the
base unit before extending the base unit from the rack, you can still extend the base
unit without disconnecting the cables. Be sure there is enough cable to allow the
base unit to fully extend from the rack. Use caution not to pinch the cables while
extending or retracting the base unit.

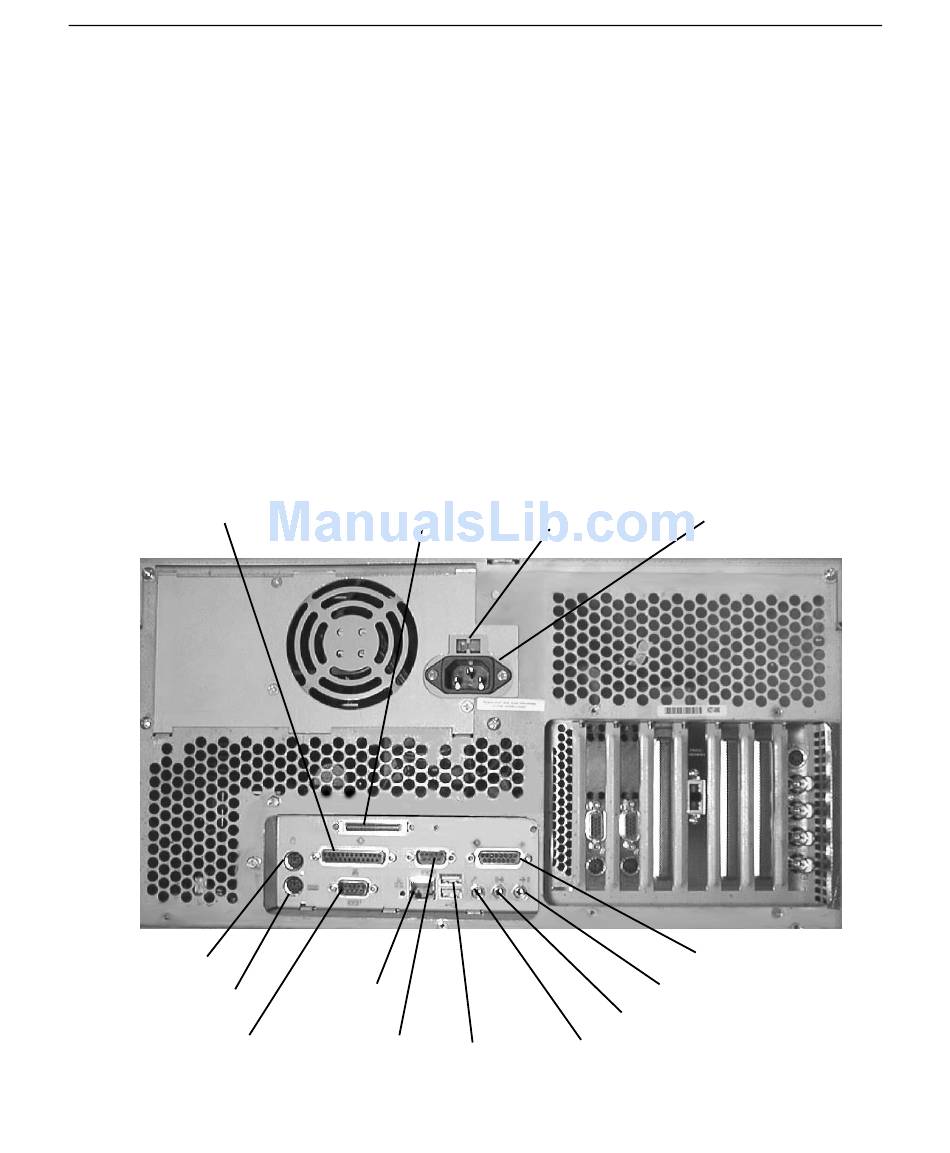

The following figure shows the ports and connections on the back of a typical GT RAX base unit.
Refer to this picture as needed when following the cable connection procedure.
Parallel
Mouse
Keyboard
Serial
(COM 1)
Narrow Ultra
SCSI
Ethernet
Serial
(COM 2) USB
Voltage
AC Power
Selection
MIDI/Game
Line Out
Line In
Microphone
9
