Installed Expansion Cards

Expansion cards are installed as needed in the Accelerated Graphics Port (AGP), Peripheral
Component Interconnect (PCI), and Industry Standard Architecture (ISA) expansion slots in the
base unit. The layout of expansion slots, and the location of typical expansion cards installed in a
GT RAX system, is as follows:
Slot Type
0 (Left) AGP
1 PCI
2 PCI
3 PCI
4 PCI
5 PCI
6 PCI
7 (Right) PCI/ISA
For information on installing or connecting to expansion cards, see the System Reference and the
documentation delivered with the expansion cards.

Installing Removable Disk Drives

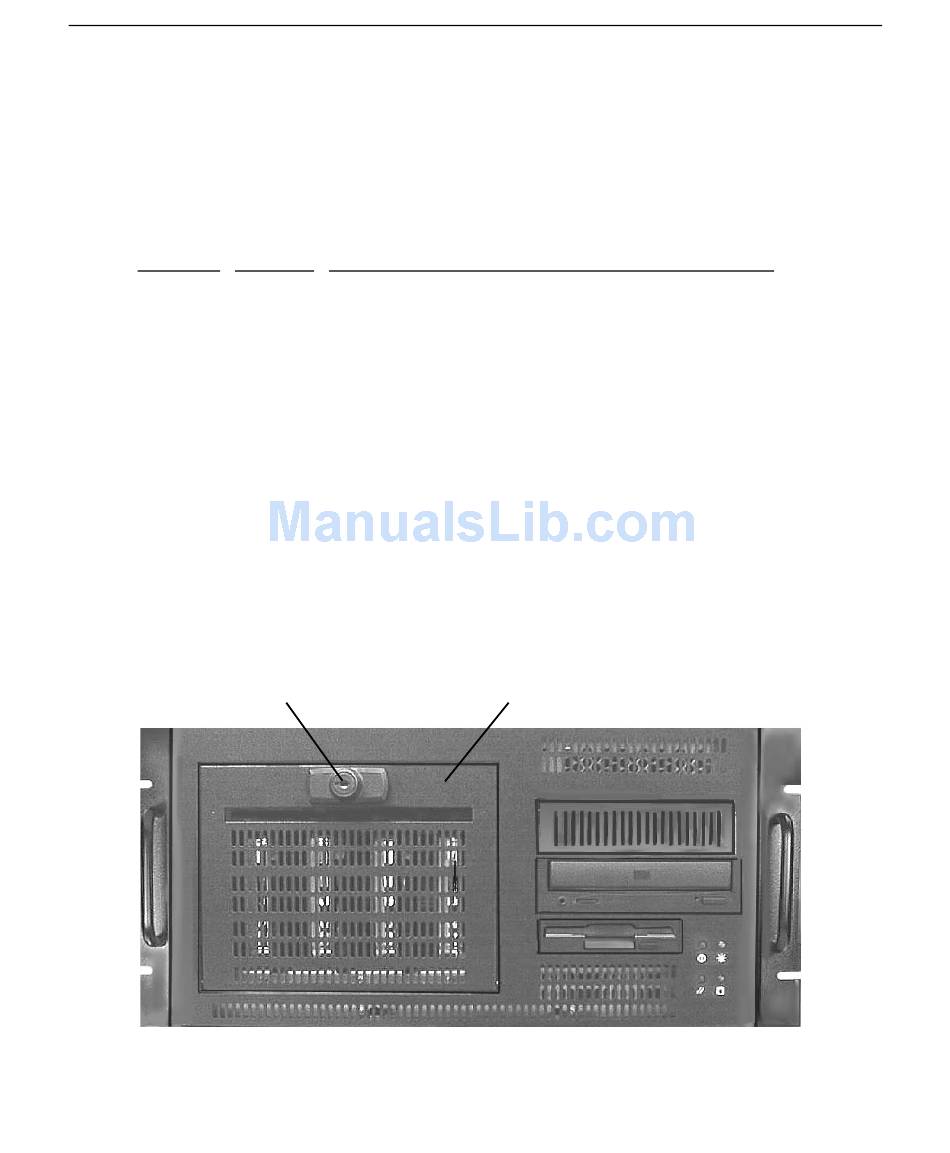

The following figure shows the disk drive bay door and door lock on the front of the system.
Door Lock
Expansion Card
Graphics controller
Graphics controller
RAID controller or other expansion card
Audio controller
Fibre Channel host bus controller or other expansion card
Fibre Channel host bus controller or other expansion card
Fibre Channel host bus controller or other expansion card
Video processor
Disk Drive Bay Door
