Connecting the Cables

This section includes procedures for connecting cables from the ErgoView stand to the digitizing
table supported by either an Intergraph Computer Systems or Hamilton table base. Verify that the
following items have been supplied:
u
Interconnect jumper (MCBLT29)
u
AC power cord (CWIR378)
u
Hand-held control cable (MCBLW020)
u
Cable kit with standalone safety jumper (MCBLF39) and AC adapter cable (MCBLT73)
For dual ErgoView stands, these additional items should be supplied:
u
Logic interconnect cable (CLBLT28)
u
AC power interconnect cable (CWIR389)
u
Hand-held control cable (MCBLW020)

Single ErgoView Stand

WARNING Never connect a digitizing table base to an AC power wall outlet when used with the ErgoView
stand. The digitizing table base must be connected to the ErgoView stand for safe operation.
This will ensure power shutdown to the table base in case of an obstruction.
1. For an Intergraph Computer Systems base, insert the standalone safety jumper (MCBLT29) into
the table base as shown in the following figure. Then insert one end of the power cord
(CWIR378) into the AC receptacle in the table base.

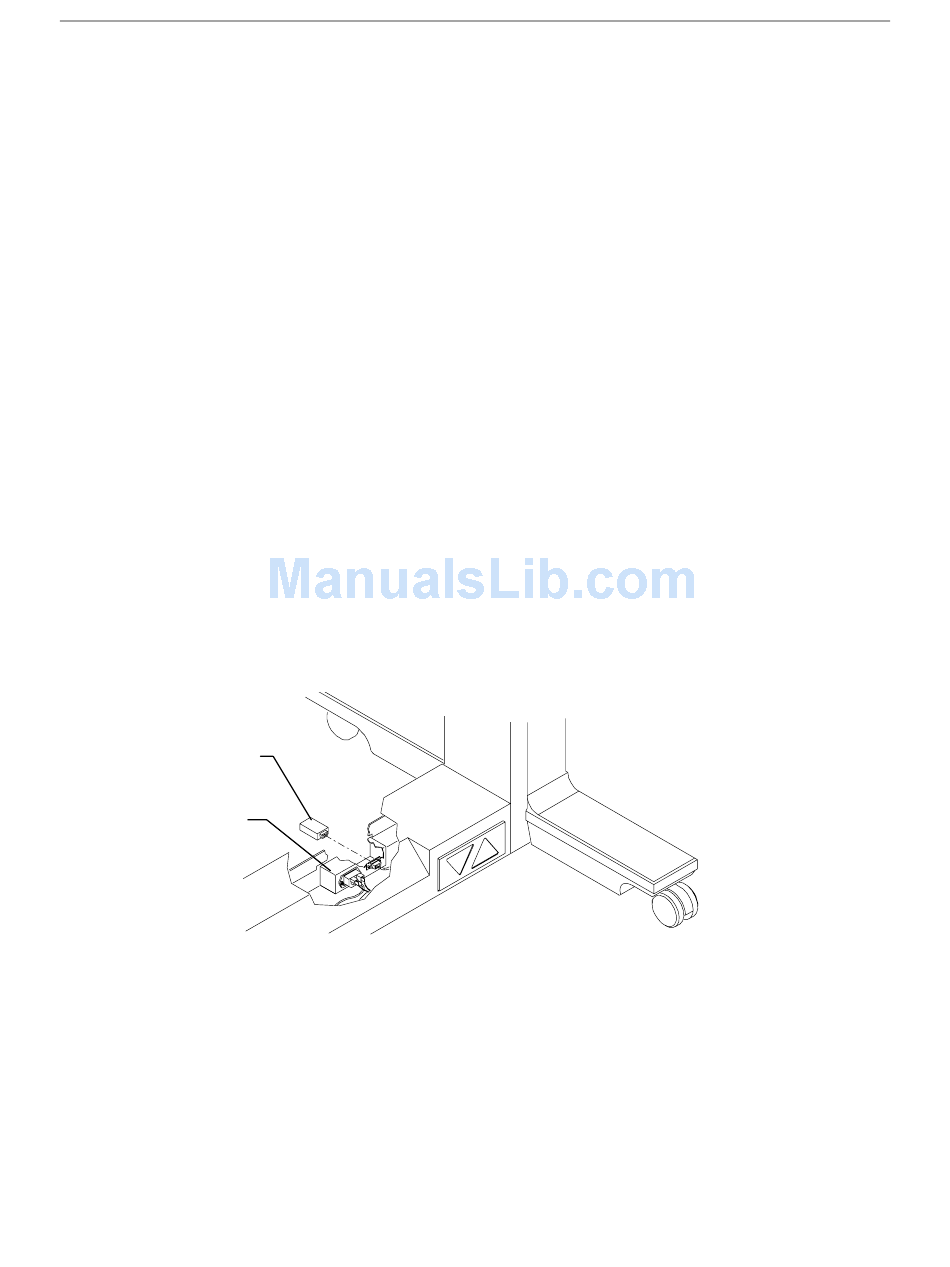

Safety
Jumper
AC
Receptacle
