The chassis fan is field replaceable. See Chapter 2, "Servicing the System," for details on
replacing the chassis fan. Ensure that you install the fan with the airflow direction arrow pointing

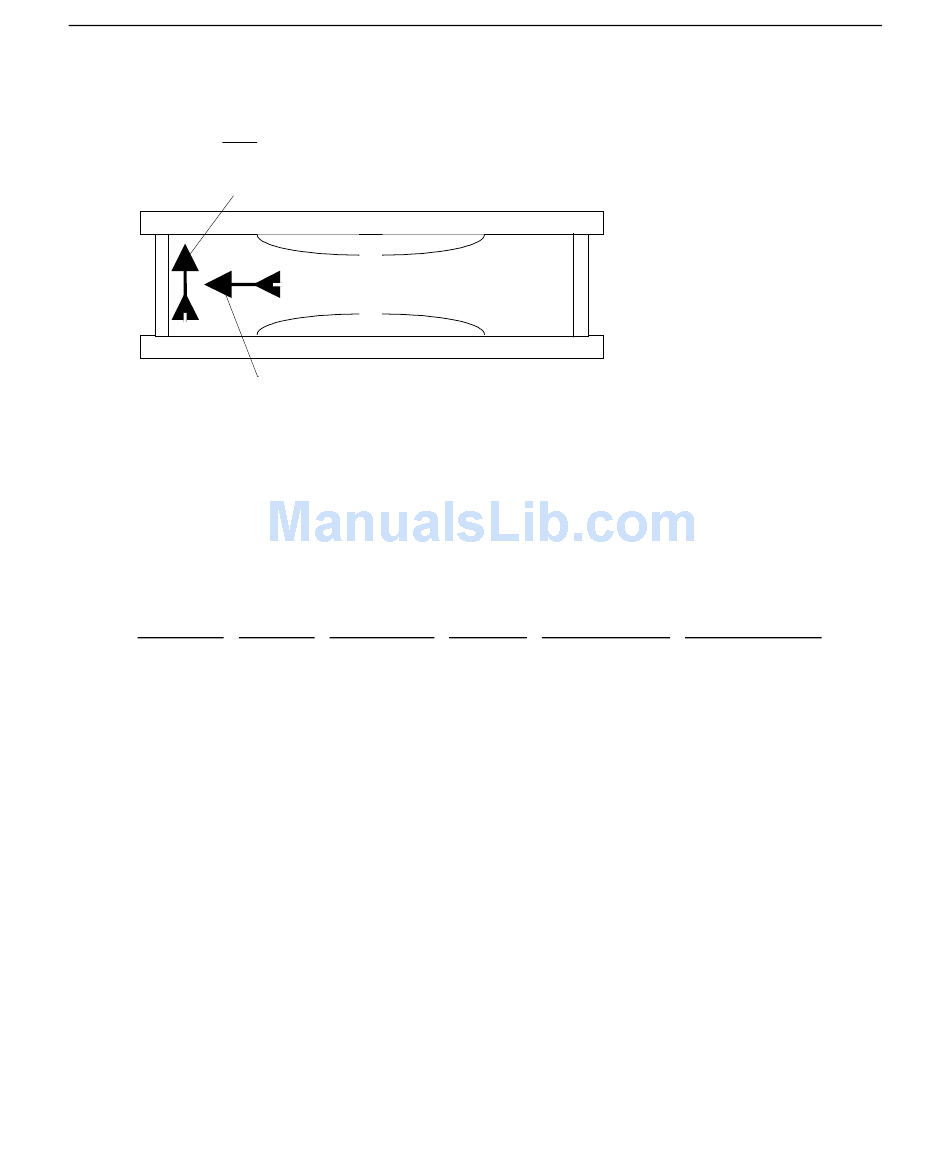

toward the back of the chassis. The following figure shows the side view of the fan and the arrows
to indicate airflow direction and rotation.
Airflow
The power supply fan is not field replaceable. If the power supply fan requires replacement, you
must replace the power supply.

Disk Drive Bay Cooling Fans

The disk drive bay also has two cooling fans mounted behind the disk drive bay. The table below
summarizes fan information.
Fan Size
Disk drive 120 mm
bay fan
The disk drive bay fans are field replaceable. See Chapter 2, "Servicing the System," for details
on replacing these fans.

Hardware Monitoring and Power Management

GT RAX systems feature advanced hardware monitoring and power management capabilities.
These features help you save energy, prolong system life, and provide for future functionality, such
as remote system wakeup.
When used with InterSite Hardware Monitor software, these features enable you to keep track such
things as voltages, temperatures, and fan speeds. For more information on the items that can be
monitored on your system, refer to Hardware Monitor Help.
Resistive temperature sensors are located on the system board near the primary processor and the
expansion slots. These devices provide signals for reporting temperature readout data to the
InterSite Hardware Monitor software. The sensor at the expansion slots provides the signal for
Rotation
Location
Behind disk
drive bay
Airflow Devices Cooled
Front-to- Disk drive bay;
back option cards
75
Connector
P6 and P9,
Power supply
