20
To replace an active processor module:
1. Disconnect the processor's cooling fan power cable from the processor fan power connector
on the system board.
2. Press the locking tabs on the top corners of the processor module inward, towards each other,
until they click into the release position.
3. Slide the processor module out of the retention module.
4. Remove the new processor from its antistatic package, and align the processor module over
the retention module. The processor module is keyed and fits only one way.
5. Press the processor module down until it seats.
6. Press the processor module locking tabs outward until they click into the locked position.
7. Connect the processor's cooling fan power cable to the processor fan power connector on the
system board.

Heat-Sink Mounting Brackets

Pentium II and Pentium III processors equipped with heat-sink fins use heat-sink locks fastened to
mounting brackets to secure them to the system board. See Chapter 4, "System Board," for
connector and socket locations.
To replace a heat-sink mounting bracket:
1. Remove the processor module as described previously in "Processor Modules."
2. Two mounting locks on the rear side of the system board secure the mounting bracket.
Remove these locks, and then remove the mounting bracket from the system board.

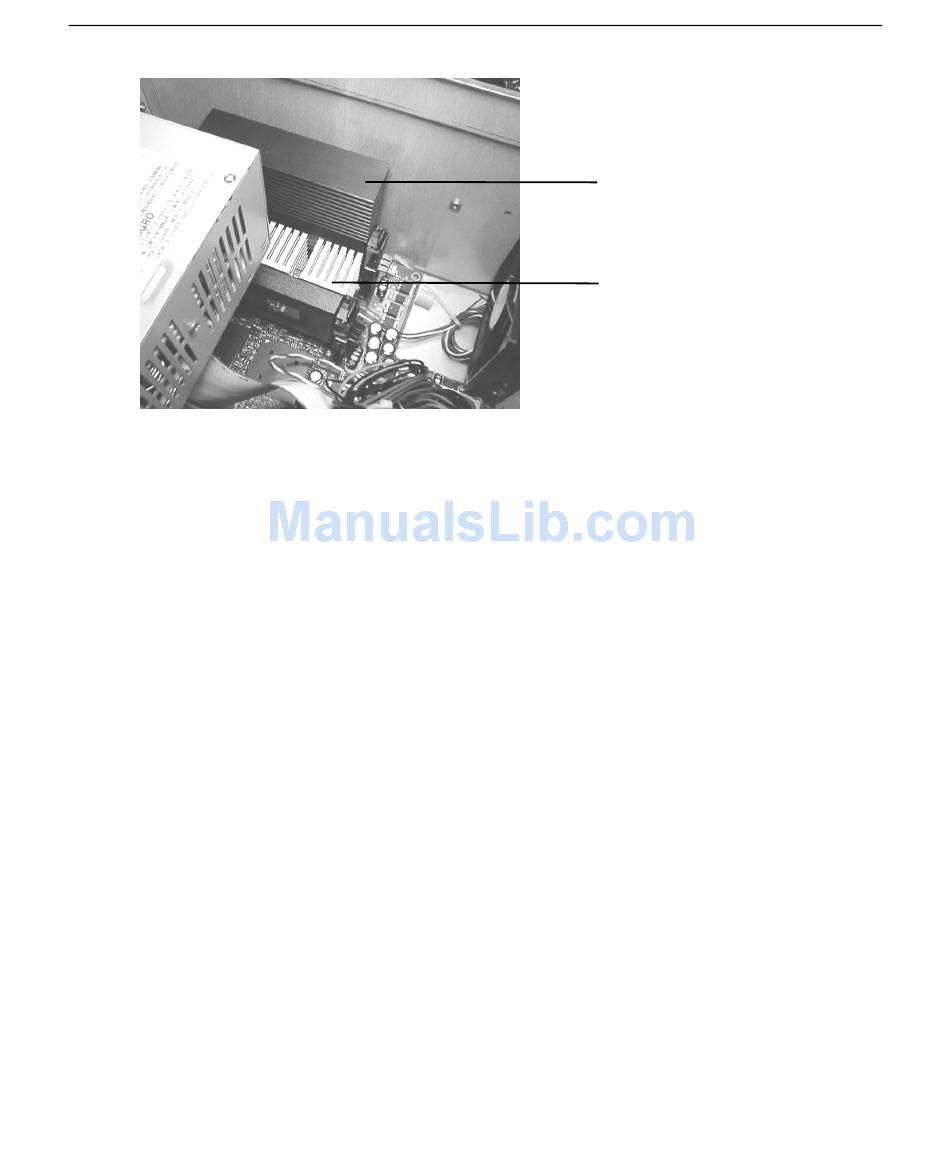

Processor with
Vertically Oriented
Heat Sink
Procesor with
Horizontally Oriented
Heat Sink
