Leds, Power, And Reset Switches - Intergraph StudioZ GT RAX System Reference Manual

WARNING There is a danger of explosion if the battery is incorrectly replaced.
WARNING Replace the battery with the same or equivalent type only, as recommended by
the battery manufacturer. Dispose of used batteries according to the battery
manufacturer's instructions.
To replace the battery:
1. Remove any expansion cards that restrict access to the battery, as described previously in
"Expansion Cards."
2. Note the positive orientation of the battery. Carefully remove the discharged battery by
grasping it firmly and pulling it out of the socket.
3. Install the new battery in the same orientation as the old battery.
4. Dispose of the battery according to the manufacturer's instructions.
5. Install the expansion cards that you removed.

LEDs, Power, and Reset Switches

See Chapter 4, "System Board," for connector and socket locations.
To replace the reset or power switches:
1. Open the face panel as described previously in "Base Unit Components."
2. Disconnect the switch cable connector from the system board.
3. Remove the two screws attaching the LED and switch mounting plate to the chassis.
4. Disconnect the power and LED cables from the switch mounting plate. Note the position of
the cables before you disconnect them.

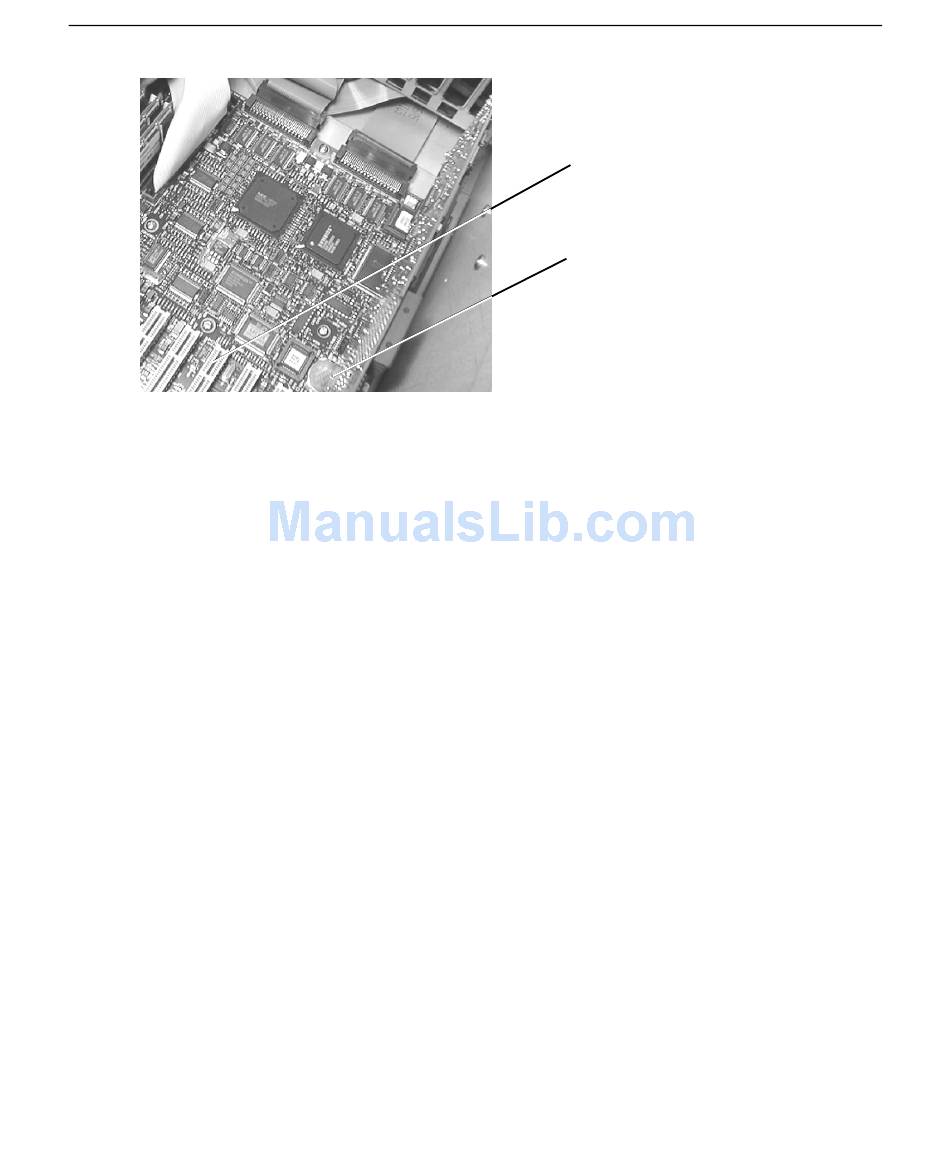

Expansion Card Slots
CMOS/Clock Battery
27
