Dual Inline Memory Modules

CAUTION System memory modules from Intergraph Computer Systems are certified for use
with Intergraph computers at extremes of temperatures and system load to ensure
reliable performance. System memory modules available from other vendors may
not function properly or reliably in your Intergraph computer.
See Chapter 4, "System Board," for DIMM socket locations.
To avoid damaging DIMMs and voiding the warranty, take the following precautions:
Do not touch the gold-plated finger contacts.
Do not bend, twist, drop, or otherwise handle DIMMs carelessly.
Do not expose DIMMs to moisture or extreme temperatures.
Do not remove DIMMs from the antistatic bag until installation.
Before you install DIMMs, do the following:
Inspect DIMM keying. The slot keys on the DIMM must match the slot keys in the DIMM
socket. This ensures that you have the correct voltage and type of DIMM.
Inspect DIMM contacts. The DIMM must have gold-plated fingers that match the gold-plated
socket contacts.
To replace a DIMM:
1. Press the release tabs outward, away from each other.
2. Grasp the top edge of the DIMM and pull it out of the socket.
3. Remove the new DIMM from the antistatic package.
4. Orient the DIMM so that the notches match the keys in the socket.
5. Push gently straight down until the release tabs snap into place.
6. Restart the computer for the BIOS to detect the new memory.

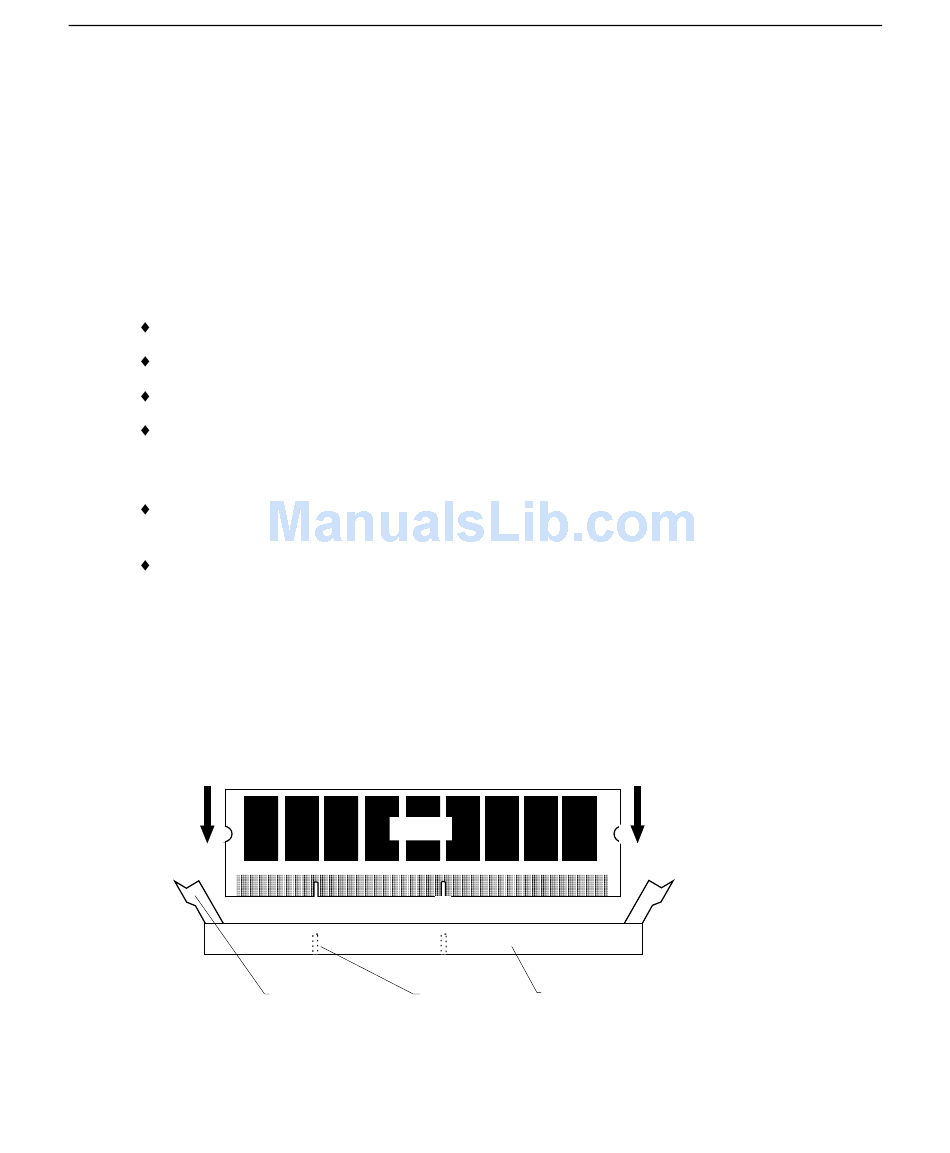

DIMM
Notch
Release Tab
DIMM socket
