7.
Do one of the following:

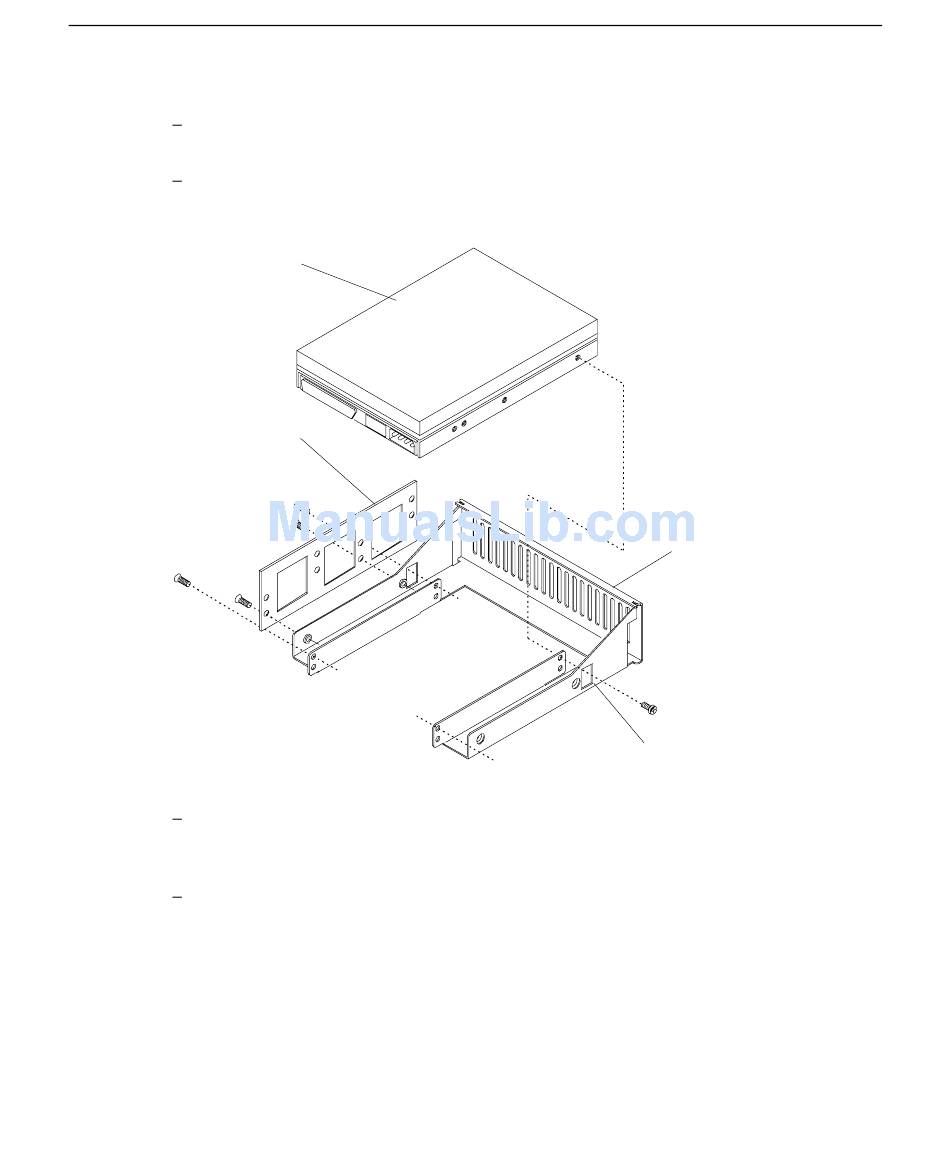

If installing a standard disk drive, place the disk drive in the tray, align the mounting
holes, and install the four mounting screws. See the following figure.
If installing a 5.25-inch device, such as a tape drive or a CD writer, remove the right and
left mounting guides from the drive tray. Then attach the right mounting guide to the
right side of the device, and the left mounting guide to the left side of the device.
Drive
Mounting Guide
8.
Do one of the following:
Lift the locking plate, and install the tray assembly with standard disk drive into the
chassis, align the first slot on the mounting guide with the tab on the locking plate, and
lower the locking plate.
Slide the 5.25-inch device into the chassis, align the tab on the locking plate with the first
slot on the mounting guide, and lower the locking plate.
9.
Tighten the thumbscrew on the top of the locking plate to lock the device into place.
10. Connect the SCSI cable and the power cable to the device.
Drive Tray
Access Hole (2)
39
