56

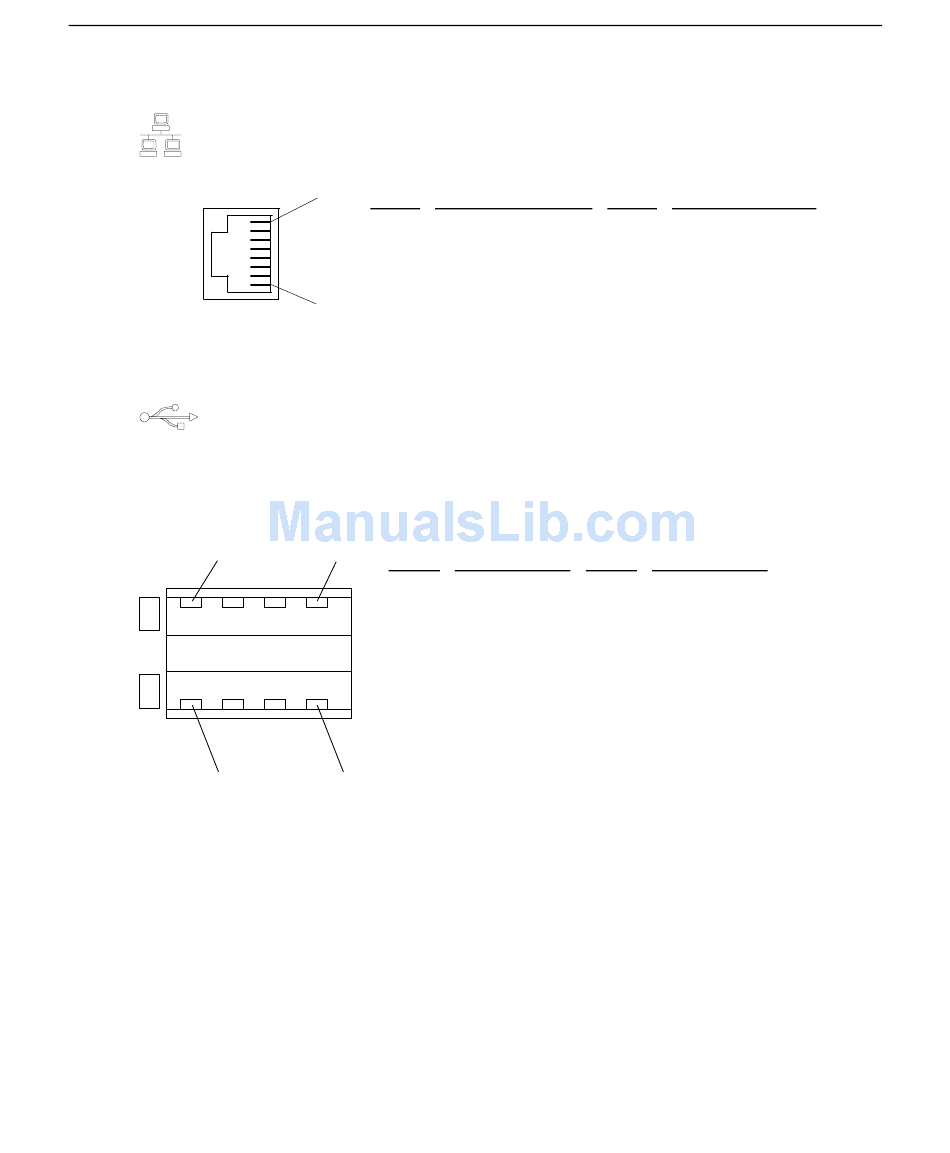

Ethernet
The Ethernet port connects a network cable (with an RJ45 connector) to the system.
Universal Serial Bus
The Universal Serial Bus (USB) port connects USB devices to the system. These devices
can include printers, keyboards and other peripherals that have historically used serial, parallel,
mouse, and keyboard I/O buses. USB devices, designed to be fully Plug-and-Play (PnP), feature
hot attach/detach and daisy-chain capabilities. The USB port can transfer data at a maximum
theoretical rate of 12 megabits per second.
1
B
A
1
1
Pin
Signal
1
TD+ - Transmit
2
TD– - Transmit
3
RD+ - Receive
4
Reserved
8
Pin
Signal
4
A1
PWR
A2
-
A3
+
A4
GROUND
4
Pin
Signal
5
Reserved
6
RD– - Receive
7
Reserved
8
Reserved
Pin
Signal
B1
PWR
B2
-
B3
+
B4
GROUND
