Opening The Base Unit; Opening And Closing The Face Panel - Intergraph StudioZ GT RAX System Reference Manual

Attach an antistatic wrist strap to any bare metal part of the base unit. The metal conductor in
the elastic sleeve of reusable antistatic straps must contact bare skin.

Opening the Base Unit

WARNING Before you open the base unit, shut down the system, disconnect the system
from AC power, and turn off power to external devices (including peripheral
devices and the monitor). Use caution to avoid injury when removing covers
and other hardware.
CAUTION Ensure the stabilizers of the rack in which the system is mounted are fully extended.
To open the base unit:
1. Remove the screws that secure the handles to the rack.
2. Disconnect all cables including the power cable, monitor, and all peripheral cables from the
back of the unit.
3. Slide the base unit out of the rack until it locks in the extended position.
4. Remove and retain the two screws that secure the top cover to the chassis: one each on the
upper left and upper right corners of the back of the chassis.
5. Slide the top cover back and lift it off.
6. Attach the grounding clip from the antistatic wrist strap to bare metal.

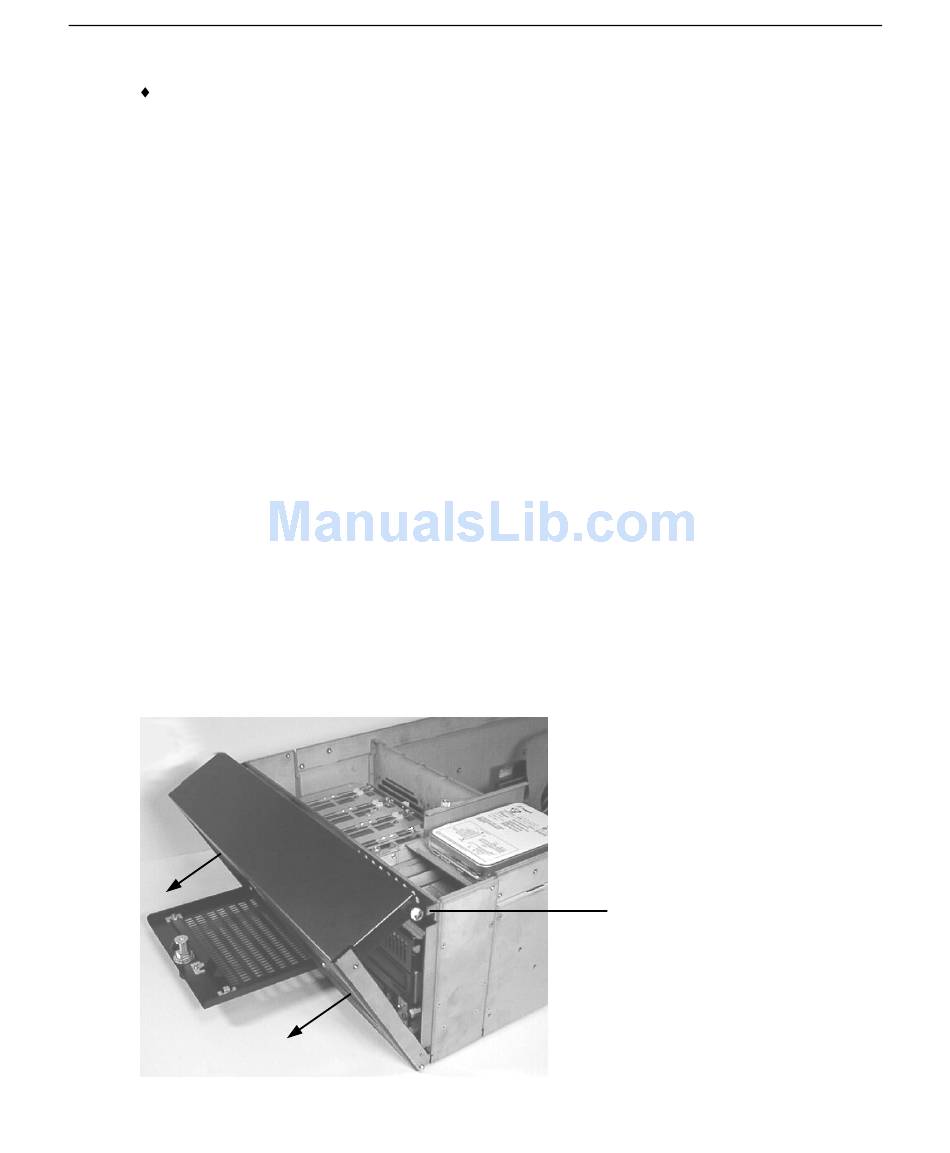

Opening and Closing the Face Panel

Face Panel Thumbscrew
(one on each side)
