Connectors and Components

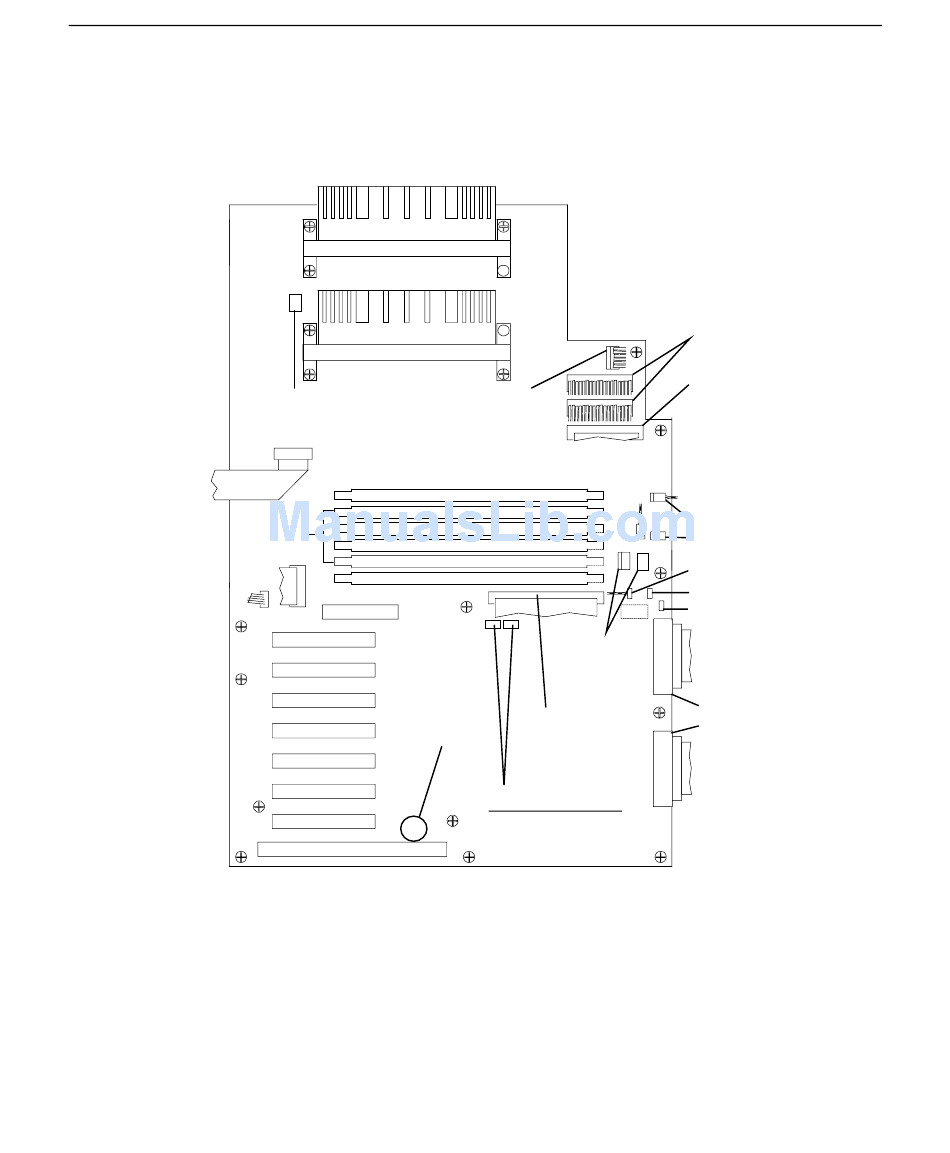

The following figure shows cable connectors and other components on the system board.
COM2 - J11
J32-J35
MIDI/game - J14
CD in - J12
NOTE
See Chapter 5, "System Hardware," for information on power connectors J34 and
J38. See Chapter 6, "Peripherals," for details on data cables.
J10 - Processor fan power - J48
J31
J36
J27
J16
J17
J18
J19
Battery
J20
J21
J22
J24
J50, J56
Chassis
fan power
Narrow Ultra
SCSI - J41
SCSI termination
(L) Channel A - J38
(R) Channel B - J39
45
Power - J42, J43
Floppy disk
drive - J44
Speaker - J61
Power button - J55
Green LED - J51
Yellow LED - J57
HDD LED - J58
Wide Ultra2 SCSI
Channel A - J63
Channel B - J64
