If the old disk drive bay has a SAF-TE card (as described in the next section), remove it from
the old disk drive bay and install it in the same location on the new disk drive bay.
9.
Insert the new disk drive bay partially into the chassis.
10. Reconnect the SCSI cable and power connectors in the same positions as the old disk drive
bay.
11. Insert the new disk drive bay the rest of the way into the chassis, and secure it with the screws
removed earlier.
12. Insert the removable disk drives into the disk drive bay as described previously in "Removable
Disk Drives." The drives should be installed in the same slots from which they were removed.
13. Replace the front panel and cover.
14. Restart the system and ensure the LED for each drive lights.

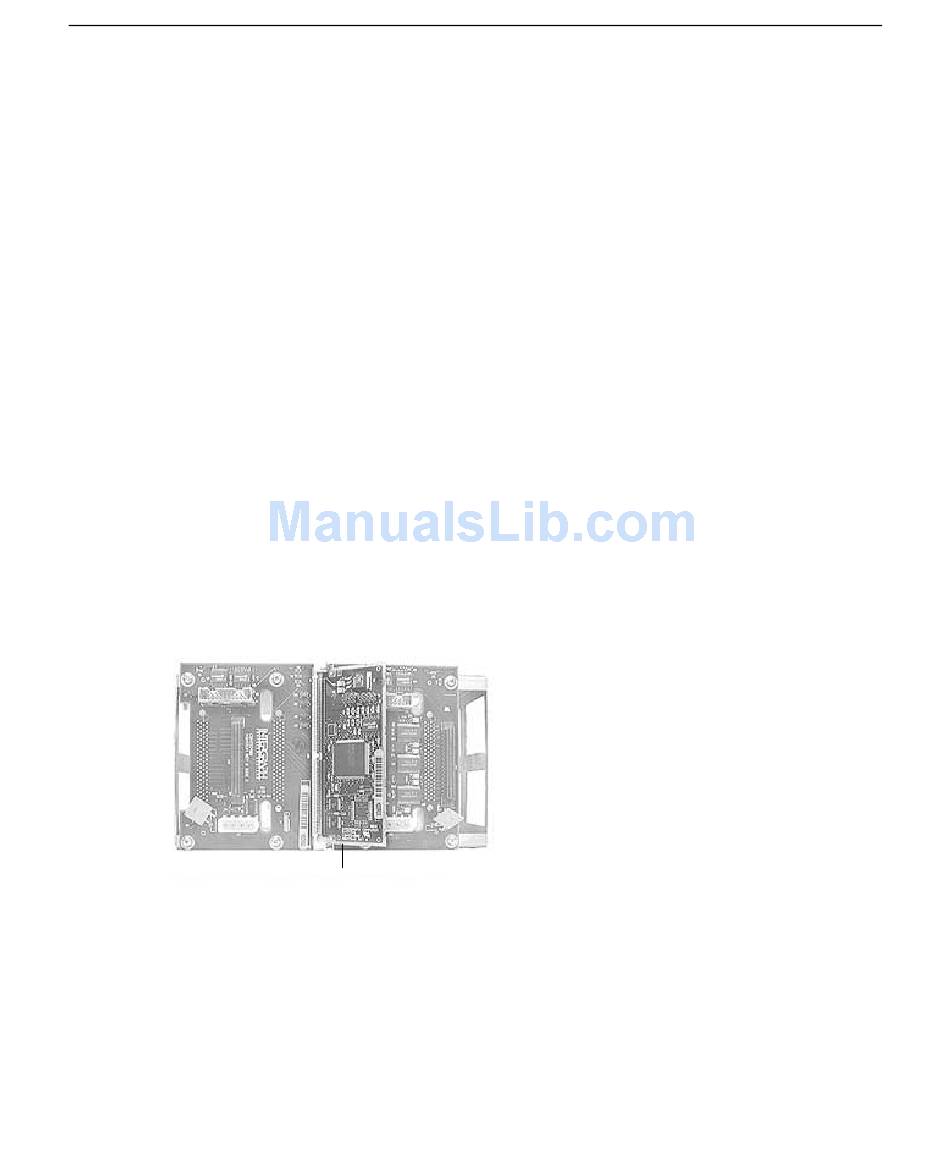

SAF-TE Card
The SCSI Activity Fault-Tolerant Enclosure (SAF-TE) card is an option used on systems with
RAID configurations. If your system has a RAID configuration with a SAF-TE card, use the
following procedure to replace the SAF-TE card.
To move or replace the SAF-TE card:
1.
Remove the disk drive bay as described previously in "Disk Drive Bay." The SAF-TE card is
located in the middle of the SCSI backplane on the back of the disk drive bay.
SAF-TE Card
