52
External Ports

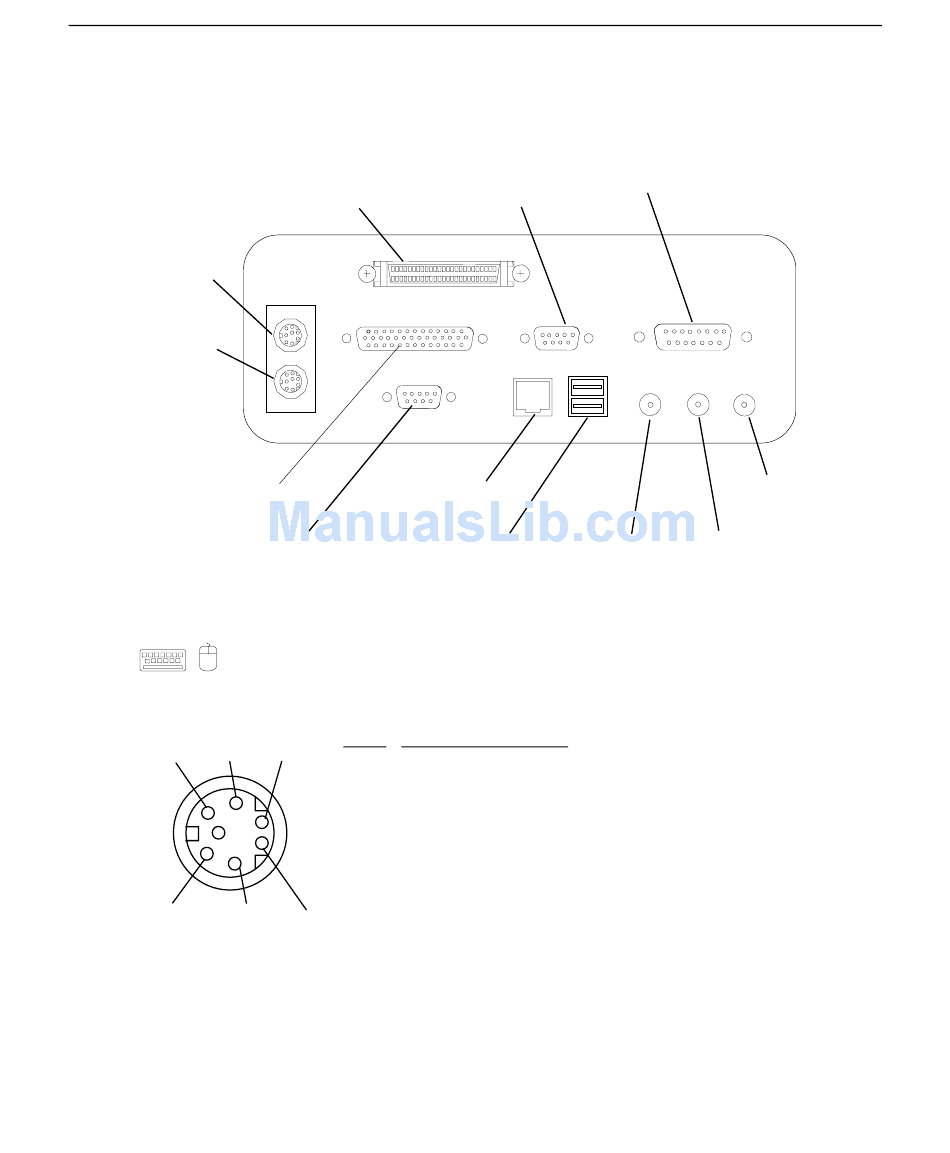

The following figure shows the external ports on the back of the unit.
Narrow Ultra SCSI
Mouse
Keyboard
COM 1 (Serial)
LPT1 (Parallel)
Keyboard, Mouse
The keyboard and mouse ports are PS/2 style, 6-pin ports. The two ports are not
interchangeable.
2
4
1
3
COM 2 (Serial)
Ethernet
Universal Serial Bus
Pin
Signal
6
1
KDATA (keyboard)
MDATA (mouse)
2
Spare
3
Ground
4
VCC
5
KCLK
5
6
Spare
MIDI/Game
Line in
Microphone
Line out
