2.
Press the two metal clips on the outside of the SAF-TE card mounting slot away from each
other, then gently rotate the SAF-TE card to a vertical position and remove it.
3.
Place the SAF-TE card vertically in the mounting slot and rotate it toward the metal clips until
it snaps into place, with the clips securing the card. Use caution to avoid applying too much
force, as damage to the SAF-TE card and/or the disk drive backplane may result.
4.
Replace the disk drive bay as described previously in "Disk Drive Bay."
Power Supply
See Chapter 6, "System Hardware," for technical information on the power supply.
To replace the power supply:
1.
Unplug the AC power cord from the rear of the unit.
2.
Remove the top cover. See Chapter 1, "Accessing the Components," for details.
3.
Note the location of all power cable connectors on the system board and peripheral devices:
Connector
P1
P2
P3
P4
P5
P6
P7
P8
P9
4.
Disconnect all power cables from all internal devices and the system board.

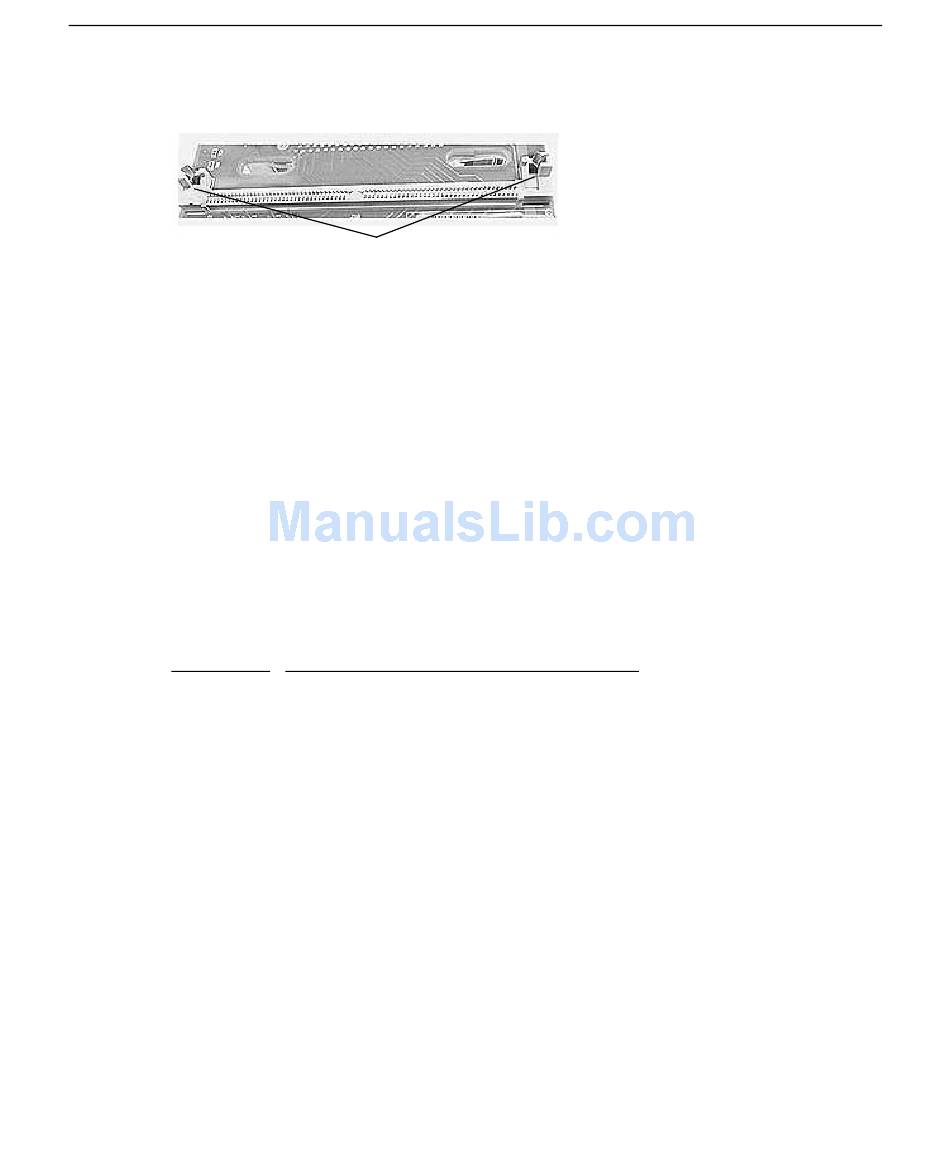

Mounting Clips
Connects to
System board
Reserved
CD-ROM drive
Floppy drive
Reserved
SCSI backplane (on disk drive bay)
Reserved; use for peripheral drive bay device
Reserved
SCSI backplane (on disk drive bay)
